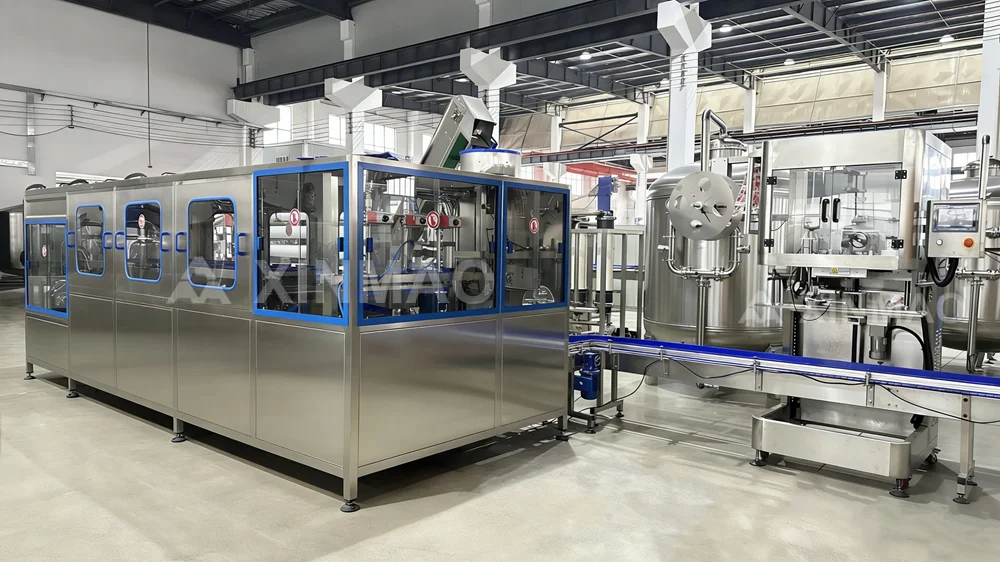

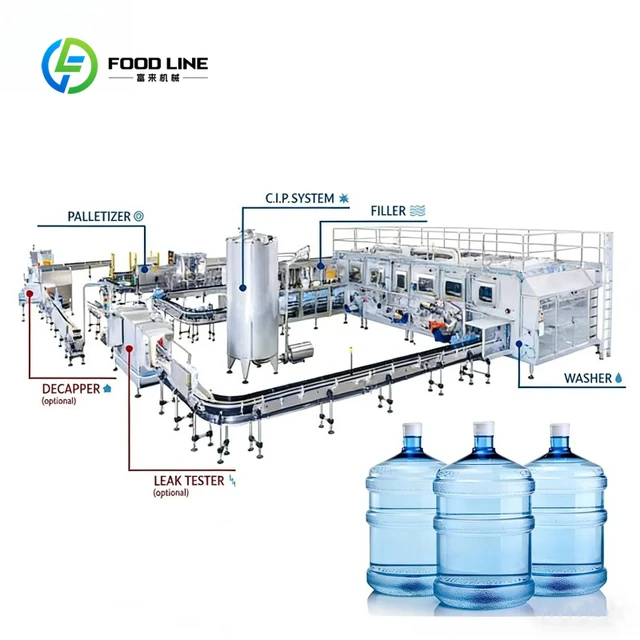

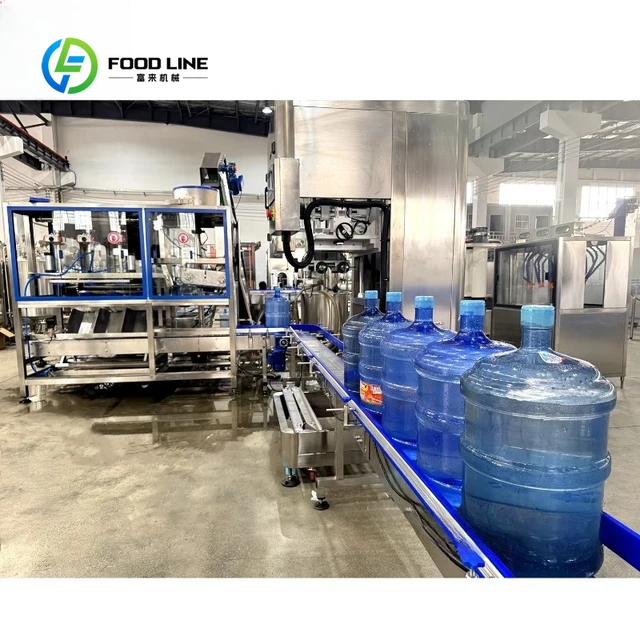

    Customer Plant Layout

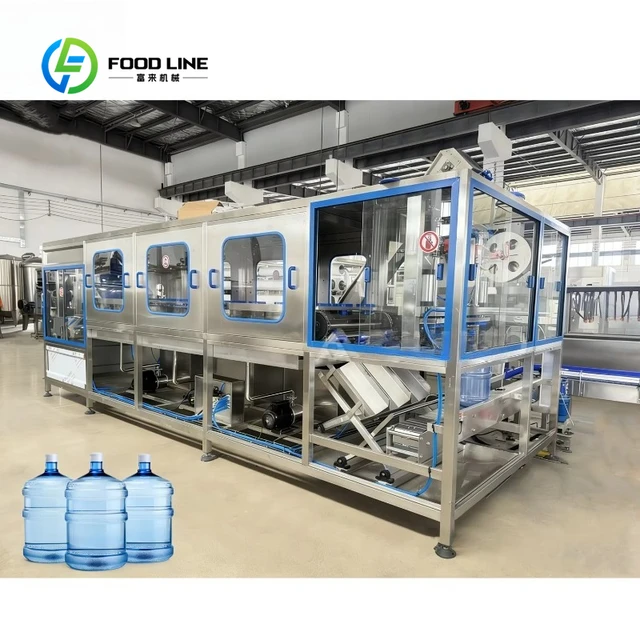

    450BPH Automatic 5 Gallon Water Barrel Production Line / 20 Liter Water Filling Machine For Purified Mineral Water
    XINMAO QGF series 5 gallon filling machine is designed for producing 5 gallon barrel drinking water.This machine is consisted of rinser,filler and capper. The rinser has several sprays which can be used as for both clean water rinsing and disinfectant rinsing. The disinfectant can be recycled. The machine also has automatic capping device, and cap rinsing device. The wholeproduction line can automatic feeding barrel, rinsing, sterilizing, filling, capping, counting and output.QGF barrel production line is specially used for 5 Gallon barrel drinking water. This machine integrates washing/filling/capping into one unit. It is the good ideal for produce the mineral water/distilled water/pure water equipments. Whole machines are adopt the high quality stainless steel, It’s erosion proof ability is strong, easy to washing.
    External flashing device

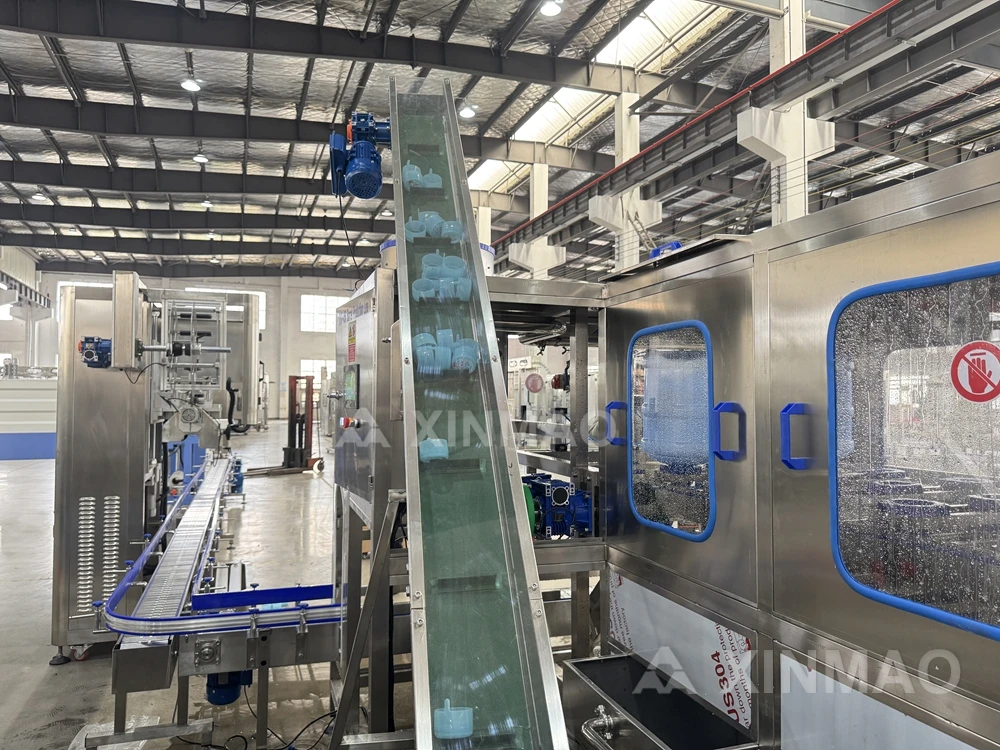

    Cap elevator

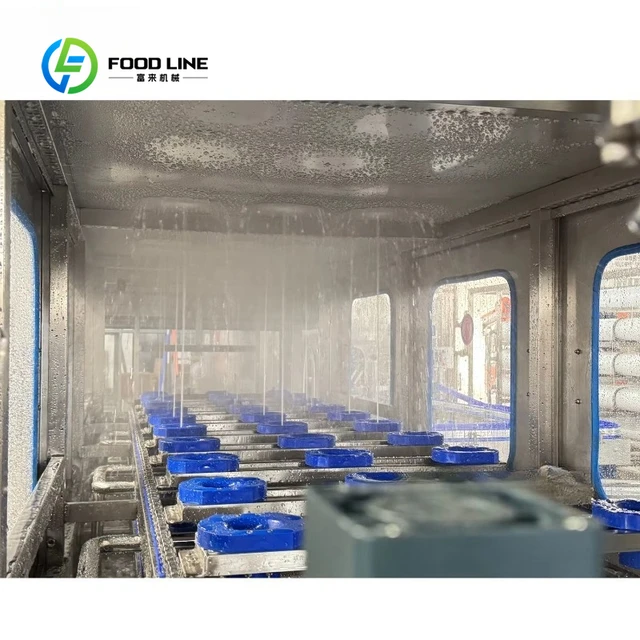

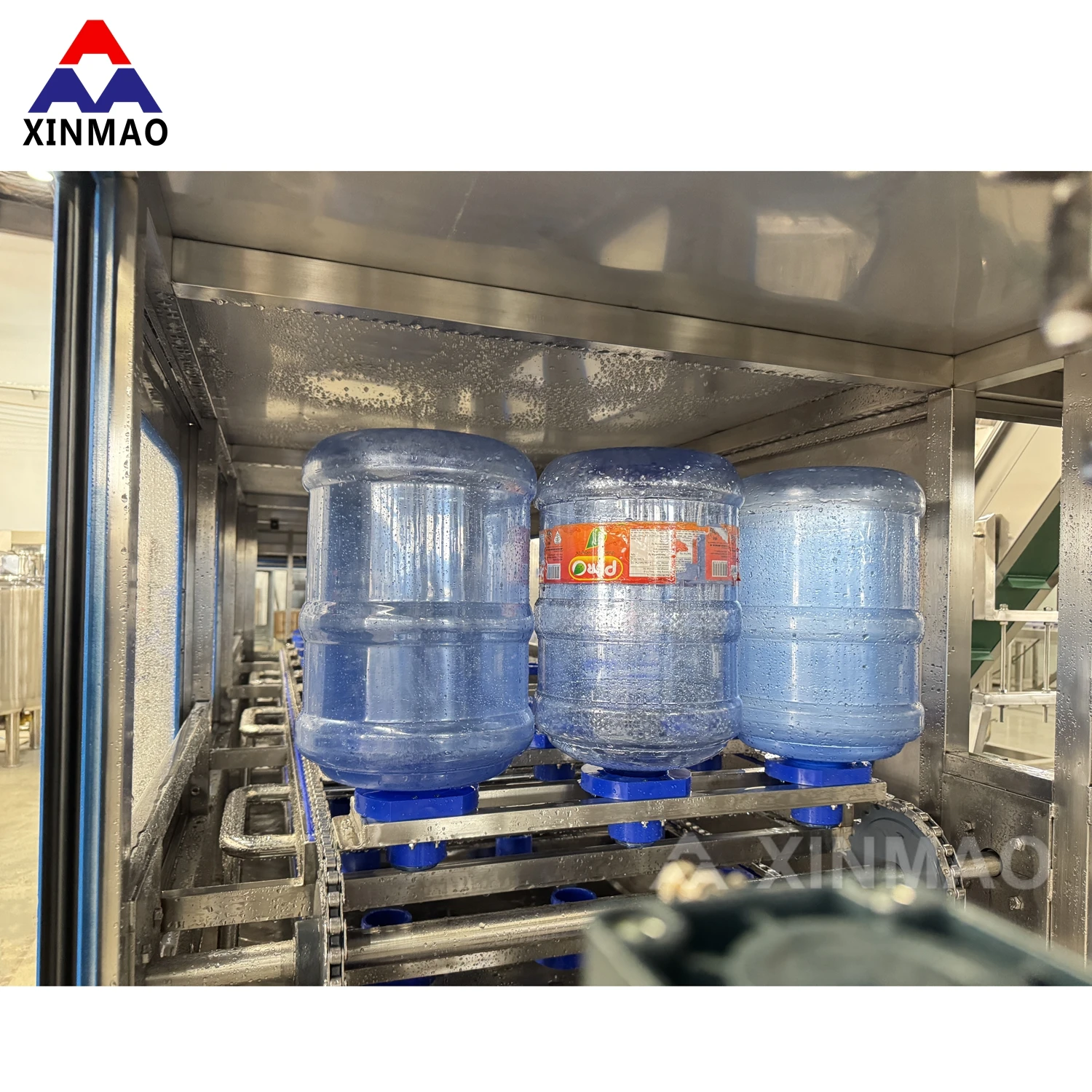

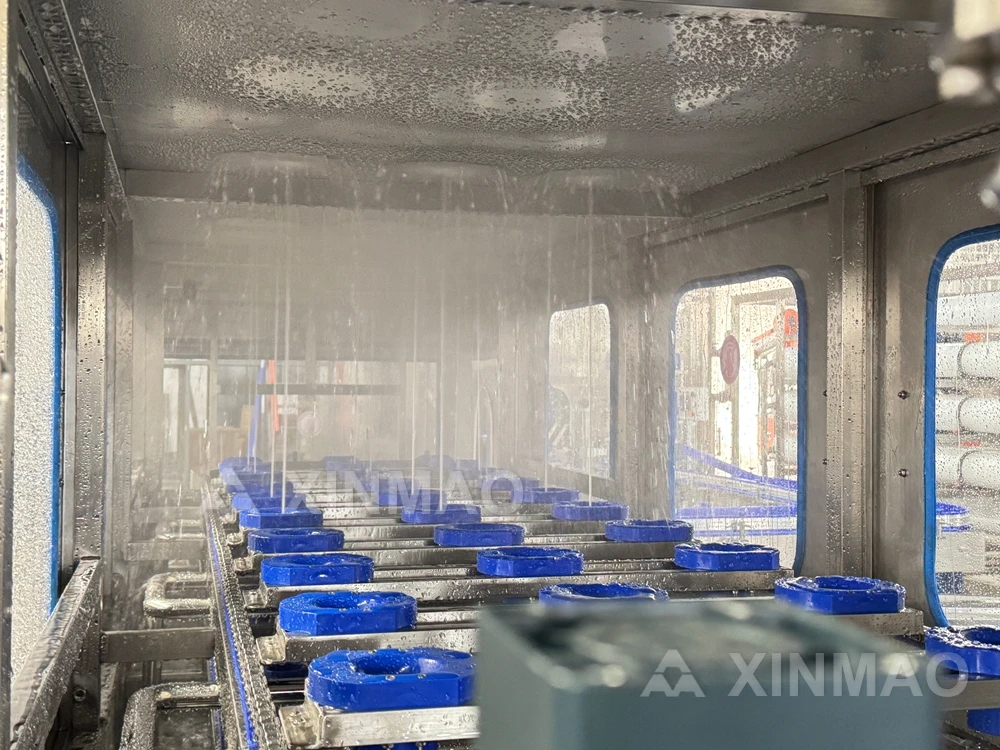

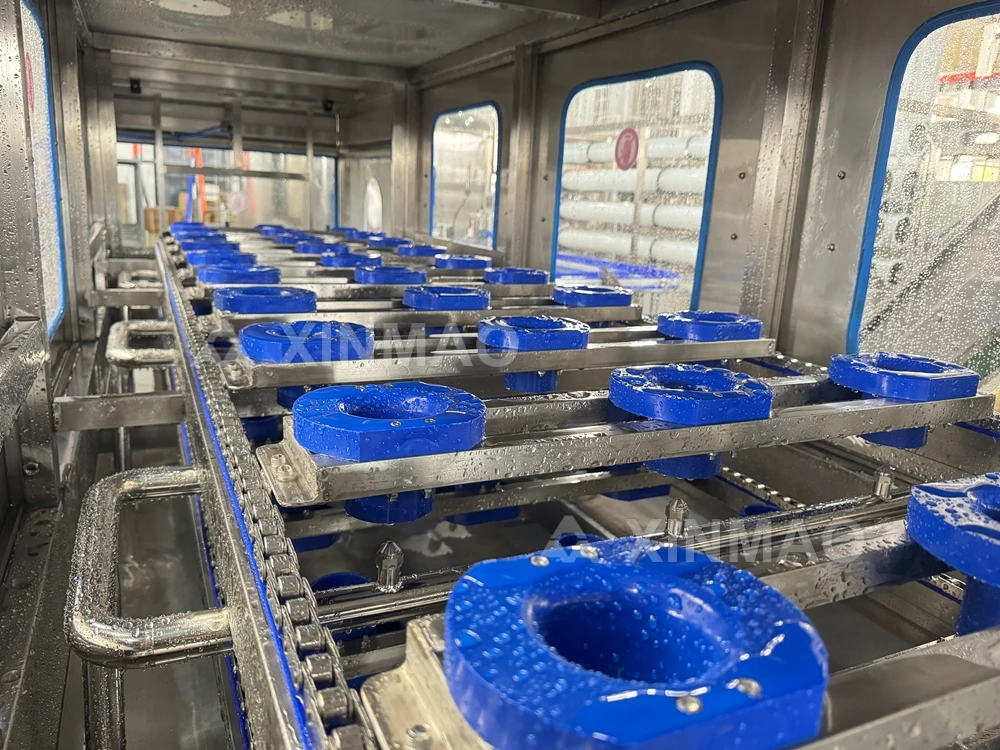

    Washing part
    Washing part
    Washing part

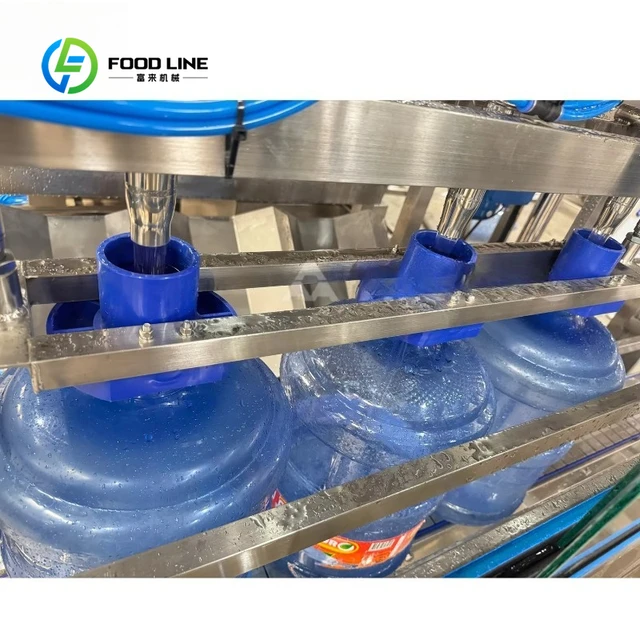

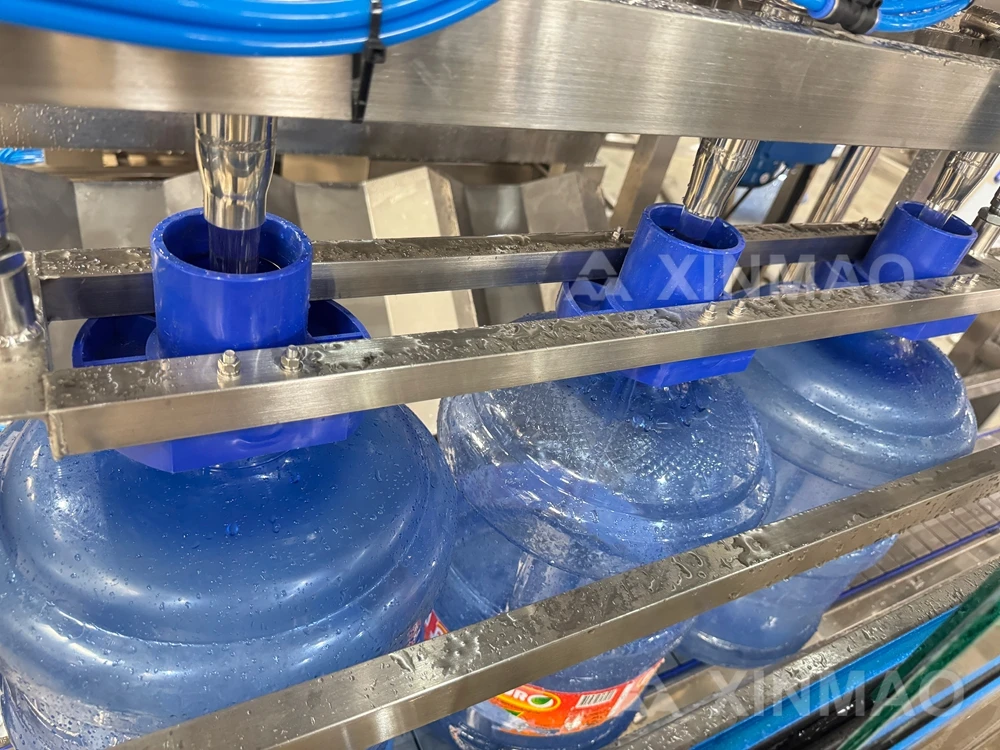

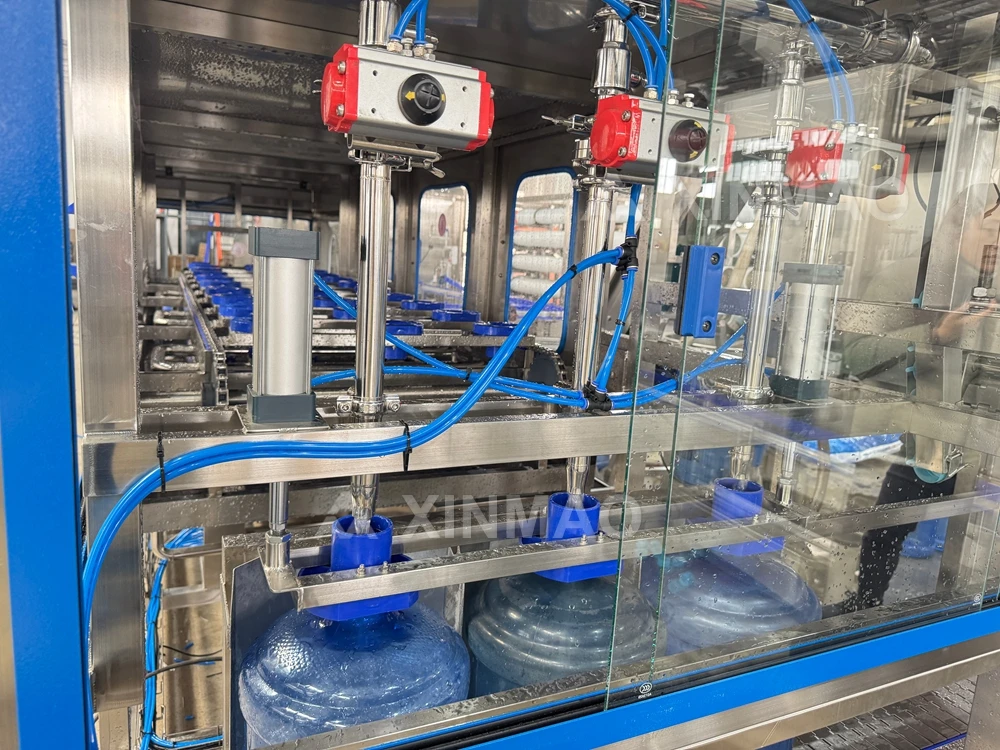

    Filling part
    Filling part

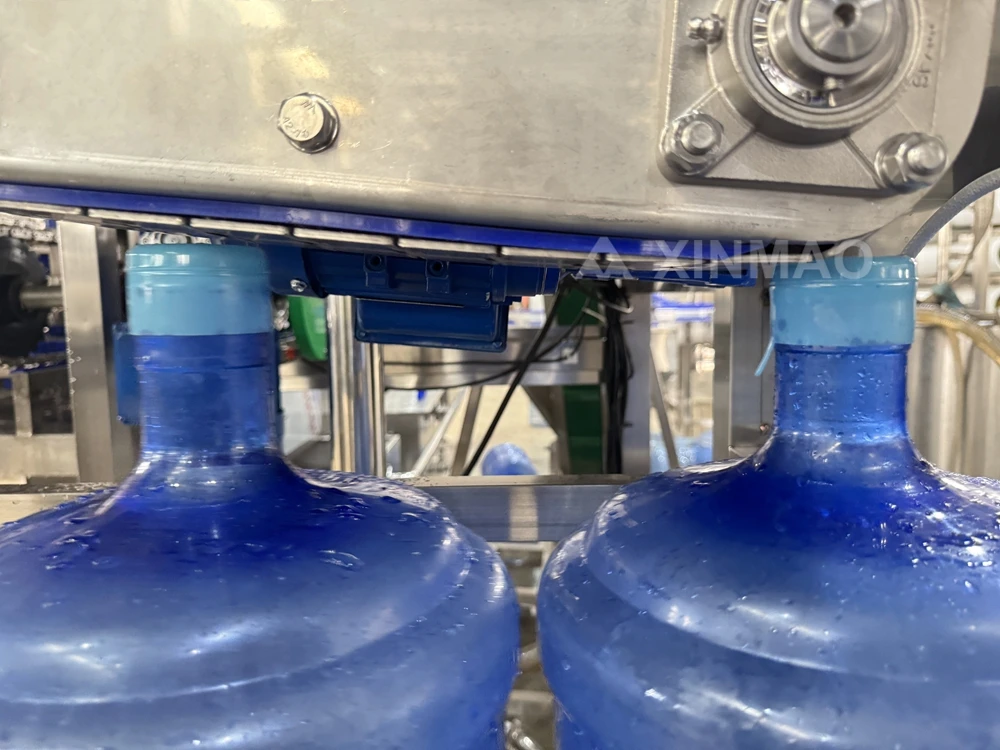

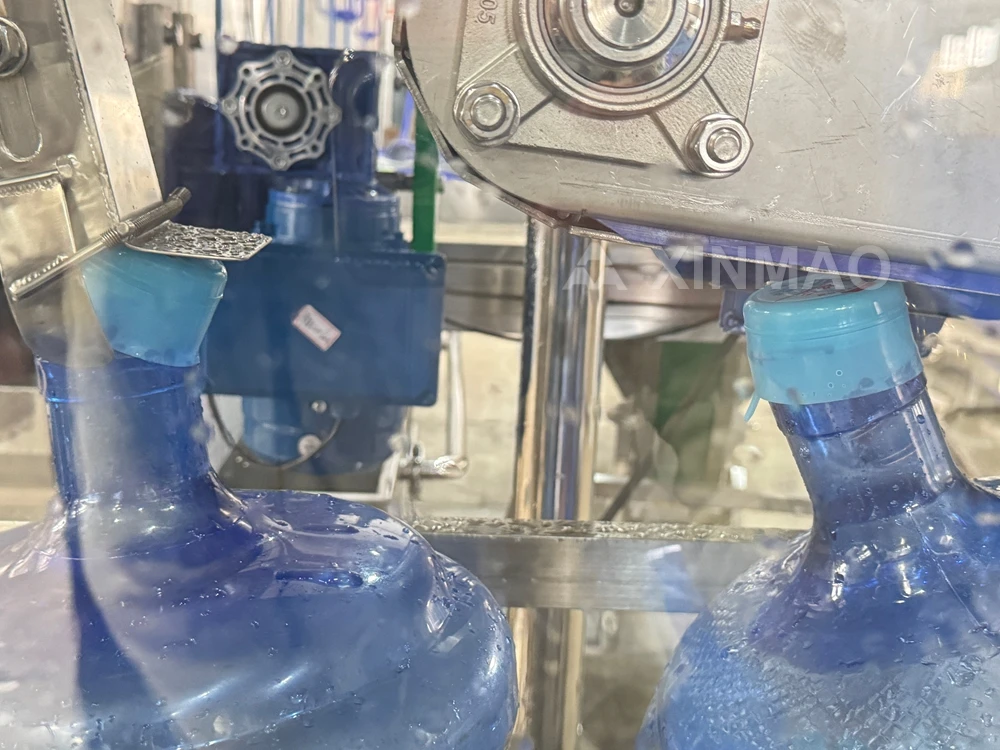

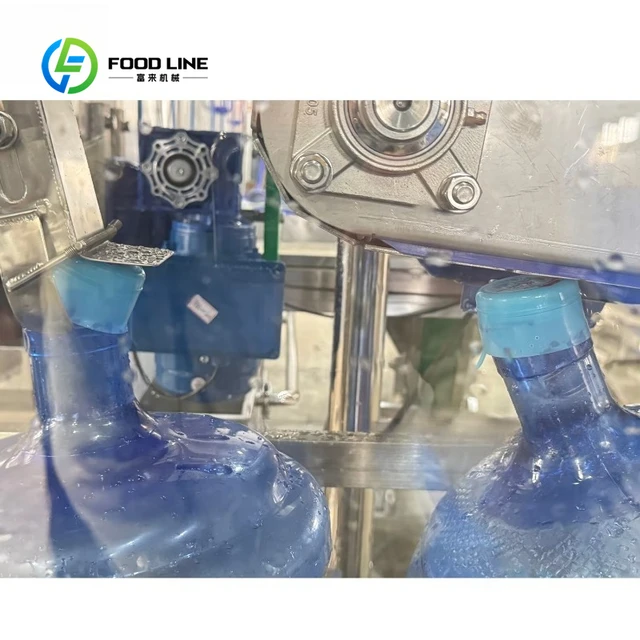

    Capping part
    Capping part
    Related Products

    1. Water Treatment System
    According to customer’s raw water analysis report and the final water standard request, we will suggest customer to choose the
    suitable water treatment system.



    2.Semi-Automatic Blow Molding Machine
    Semi-auto PET bottle blowing machine plastic bottle blow molding machineis suitable for producing PET plastic containers and
    bottles. It is widely used to produce the carbonated bottle, mineral water,carbonated drink bottle, pesticide bottle oil bottle
    cosmetics,wide-mouth bottle etc.

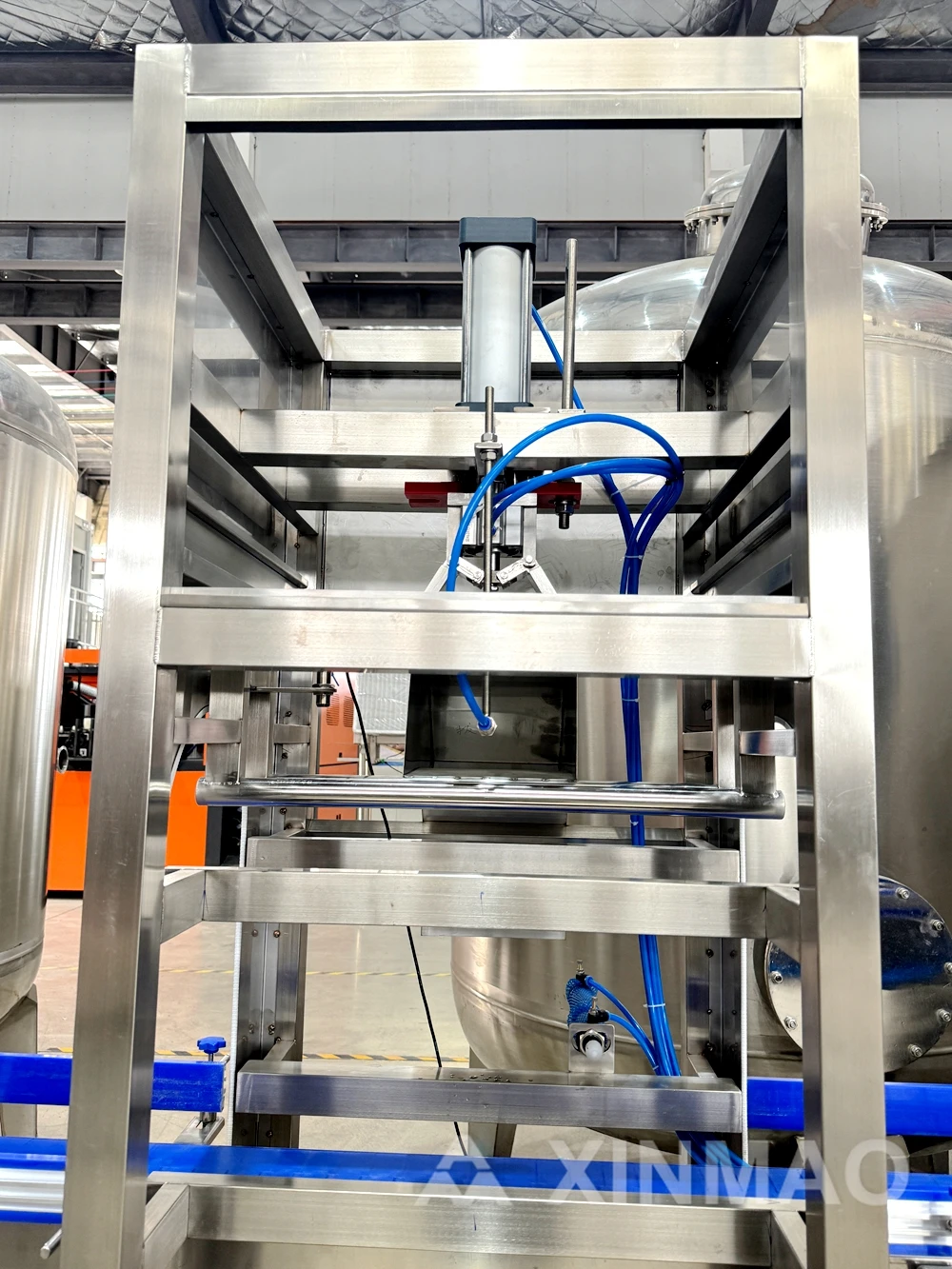

    3.Lid Removal Machine
    In a five-gallon (approximately 18.9-liter) bottled water bottling line, a capping machine is a critical pre-processing device. Its core functions are clear: 1. Automatically remove old caps from empty barrels; 2. Prepare for subsequent cleaning and filling processes; 3. Improve production efficiency and automation; 4. Ensure sanitation and safety; 5. Handle different types of caps.

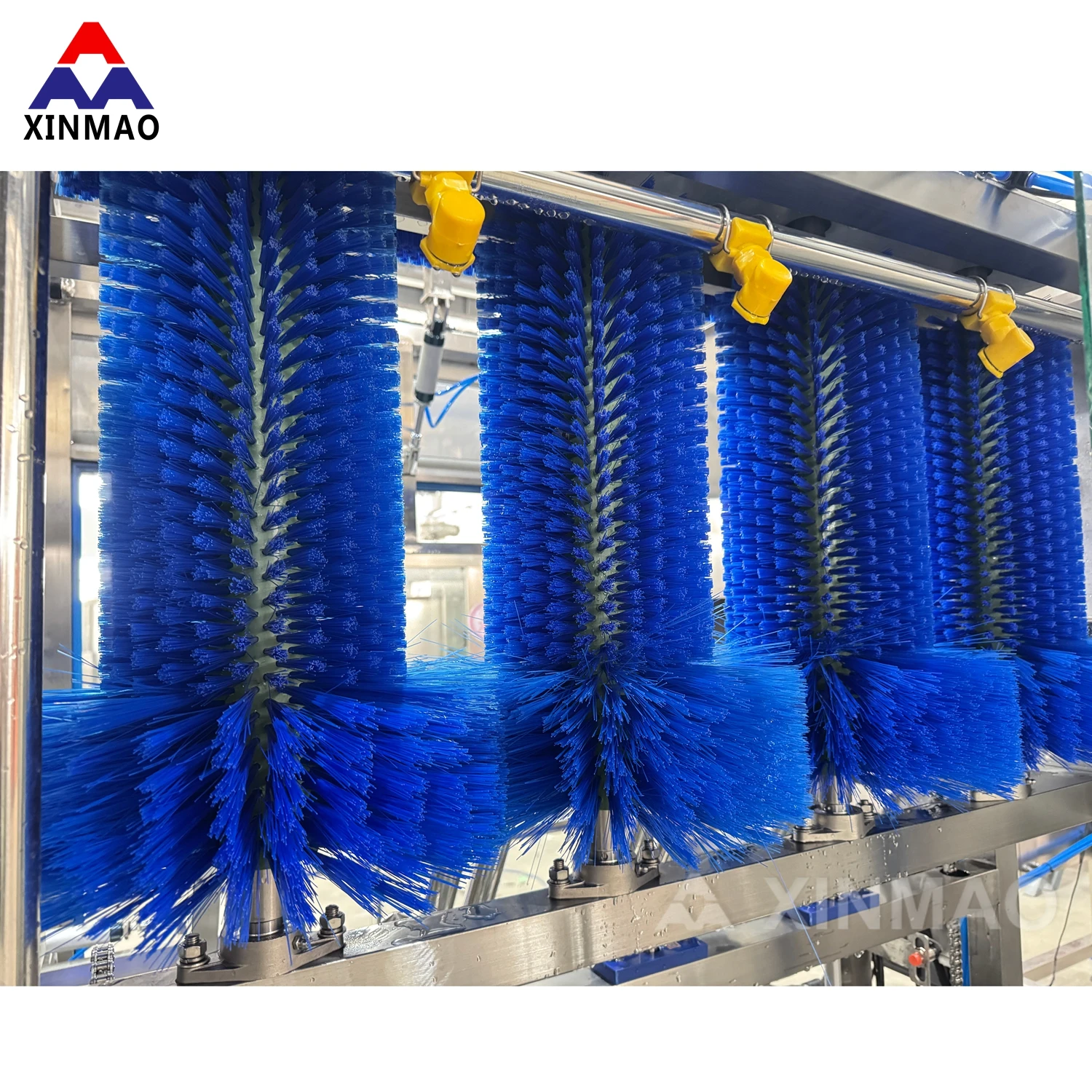

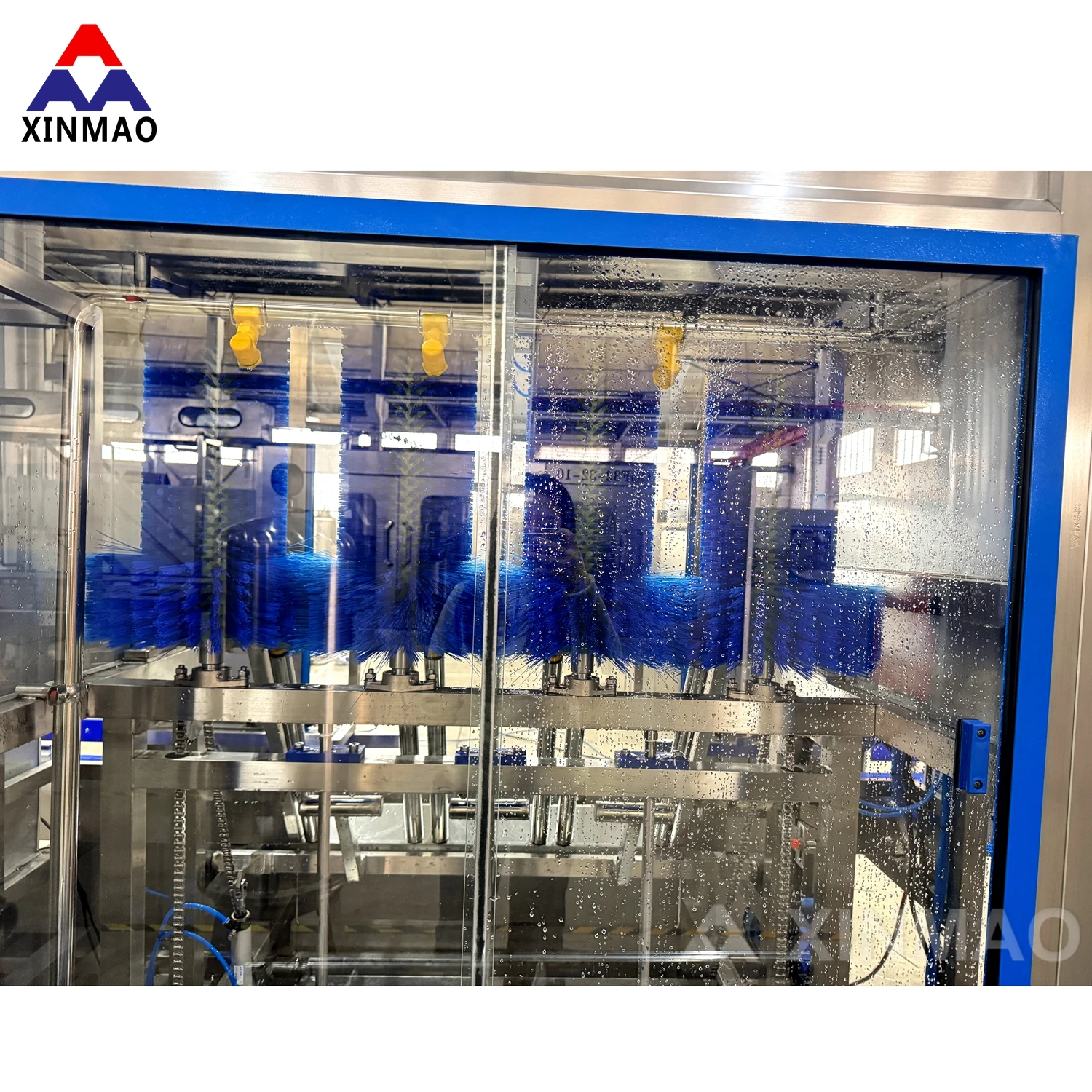

    4.Brusher Part
    The external cleaning machine on a five-gallon water filling line plays a crucial role in ensuring the hygiene and safety of bottled water “from the outside in.” It is not only the first step in the cleaning process but also a key link in maintaining the hygiene of the filling workshop, ensuring the sensory quality of the final product, and protecting the brand image. Without effective external cleaning, the subsequent meticulous internal cleaning and filling process will be significantly compromised.

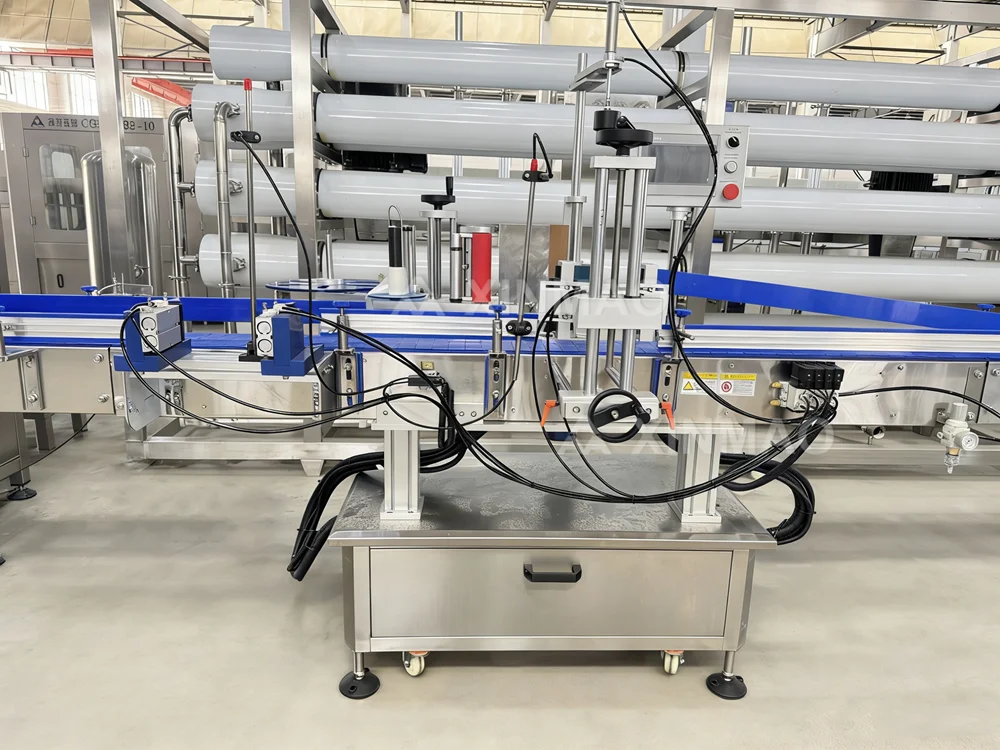

    5.Self Adhesive Labeling Machine
    Applies pre-printed labels accurately onto bottles. Ensures consistent placement, high-speed application, and strong adhesion for branding, batch coding, and product identification.

    On a 5-gallon bottled water filling line, the pressure-sensitive labeler serves as the final gateway for product identification and brand presentation. Its primary function is to accurately apply pre-printed adhesive labels to the filled and capped containers with precision and speed.
    6.PVC Shrink Labeling Machine
    On a five-gallon filling line, the sleeve labeling machine applies a shrink sleeve label—typically the tamper-evident band or full-body label—around the neck or container. It precisely cuts and places the sleeve, which is then passed through a heat tunnel to shrink tightly onto the bottle. This process ensures product security, brand integrity, and a professional appearance while enabling high-speed, automated operation with consistent placement.



    7.Automatic Palletizing Machine For Barreled Water Filling Supporting Gantry Palletizing Equipment
    In the increasingly tense situation in view of the labor, the drinking water treatment works, a large labor force resources, etc.,we are manufacturer for drinking water (water) of actual demand, in development and production of new type of numerical control for 3 to 5 gallons bottled water and automatic palletizing equipment through continuous improvement innovation, thus enable the equipment to achieve higher performance-price ratio, the equipment covers an area of less, low operating cost, Per hour can be 1200 barrels (output can be customized) bottled water according to the requirements of one to three layers (each layer 4*4=16 barrels can be customized multiple specifications), in order to facilitate transportation and storage, the whole equipment can be easily operated by one person, to a great extent, reduce the labor intensity of employees and reduce the entire production line staffing.
    Main technical features:
    1, the use of slide type self-gravity bucket, server state zero power consumption, low energy consumption; The built-in proximity signal detection mechanism automatically adjusts the palletizing speed according to the output to achieve matching with the filling bottle line.
    2, the bucket system adopts the new design pneumatic opposite type bucket clip, does not hurt the barrel mouth and shrink film,does not drop the barrel, the gas consumption is small.
    3, lifting system adopts linear bearing slider type soft connection structure, the equipment lifting speed is stable, the accident of mechanical failure protection mechanism and other functions, effectively ensure the protection function of the machine under special fault.
    4. The machine can stack 1-3 layers, and the number of stacking layers can be adjusted arbitrarily on the touch screen to meet the different needs of customers.
    5, manipulator lifting, translation position using numerical control technology detection and positioning, bucket, bucket position is quite concise and accurate, avoid the high fault rate caused by the excessive use of positioning switch. The bucket adopts servo system, the bucket in the process of lifting and translation at high, low and medium speed operation (low speed bucket clamping – high speed operation – low speed bucket unloading), so as to make the whole operation process coordinated, smooth operation.
    6, the machine adopts microcomputer control, man-machine interface operation, running parameters and action process can be freely adjusted on the touch screen, with fault stop, alarm, and other functions.
    7. Photoelectric detection and protection switch is set at the lifting and lifting position of the machine. When the machine is running, if abnormal phenomenon is detected at the detection part, the machine will stop immediately and alarm, which protects the safety of production personnel and equipment to a large extent
