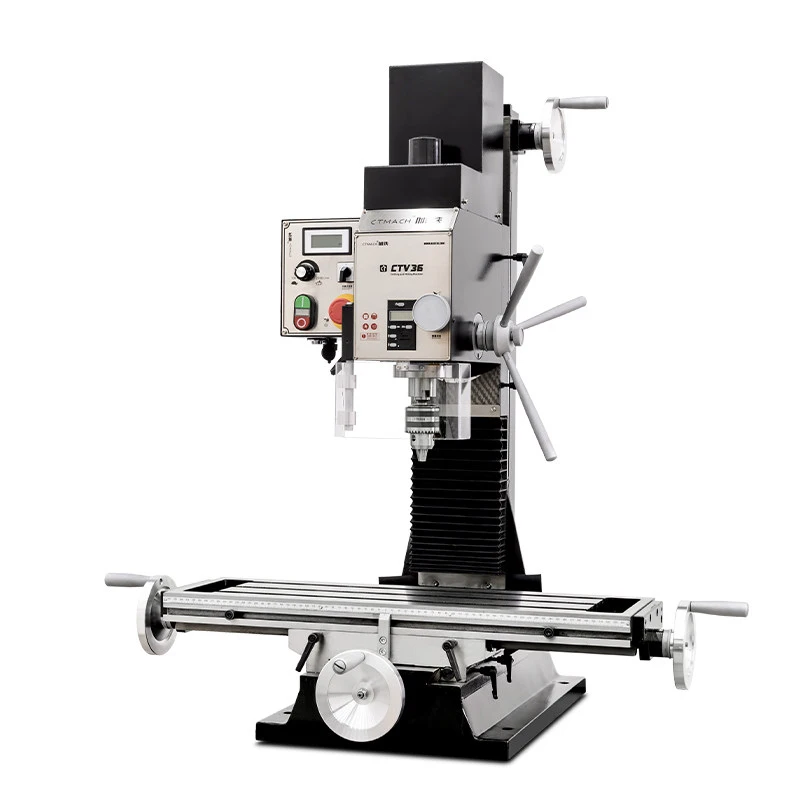

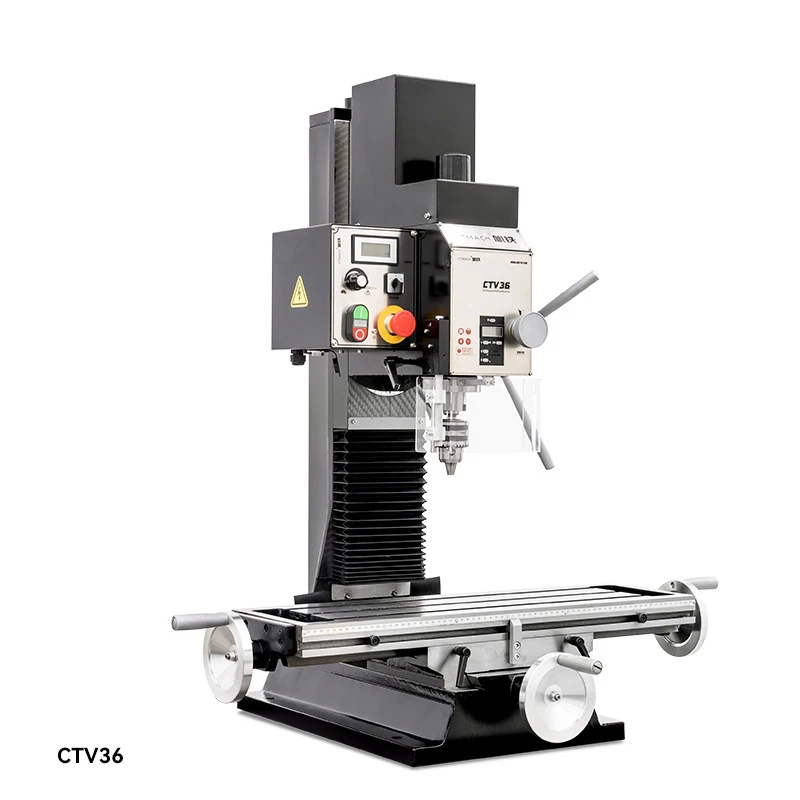

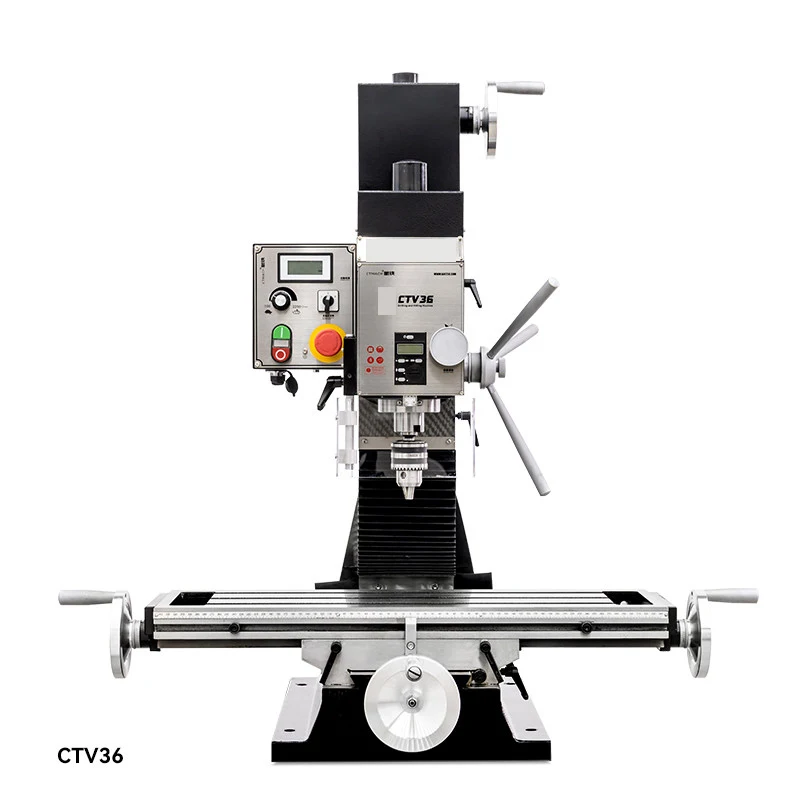

High Precision CTV36 Silent Household Drilling Machine

Experience high precision and silent operation with the CTV36 household drilling machine. Featuring a brushless DC motor, variable speed regulation, and smooth transmission, this machine is designed for efficiency and precision.

Good quality New product CTV36 silent household continuously variable speed table drilling and milling machine

Dear Buyer, This product is custom-made, and the price shown is not the final price . We offer a variety of delivery methods, including DDP, DAP, EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT. Freight needs to be calculated based on the delivery mode. The most important thing is that you need to communicate with our customer service to confirm the product parameters.Specific pricing varies depending on the country and custom requirements, please contact customer service. Orders not confirmed by customer service will not be shipped.

Contact Eric。    whatsapp+86 18322701295

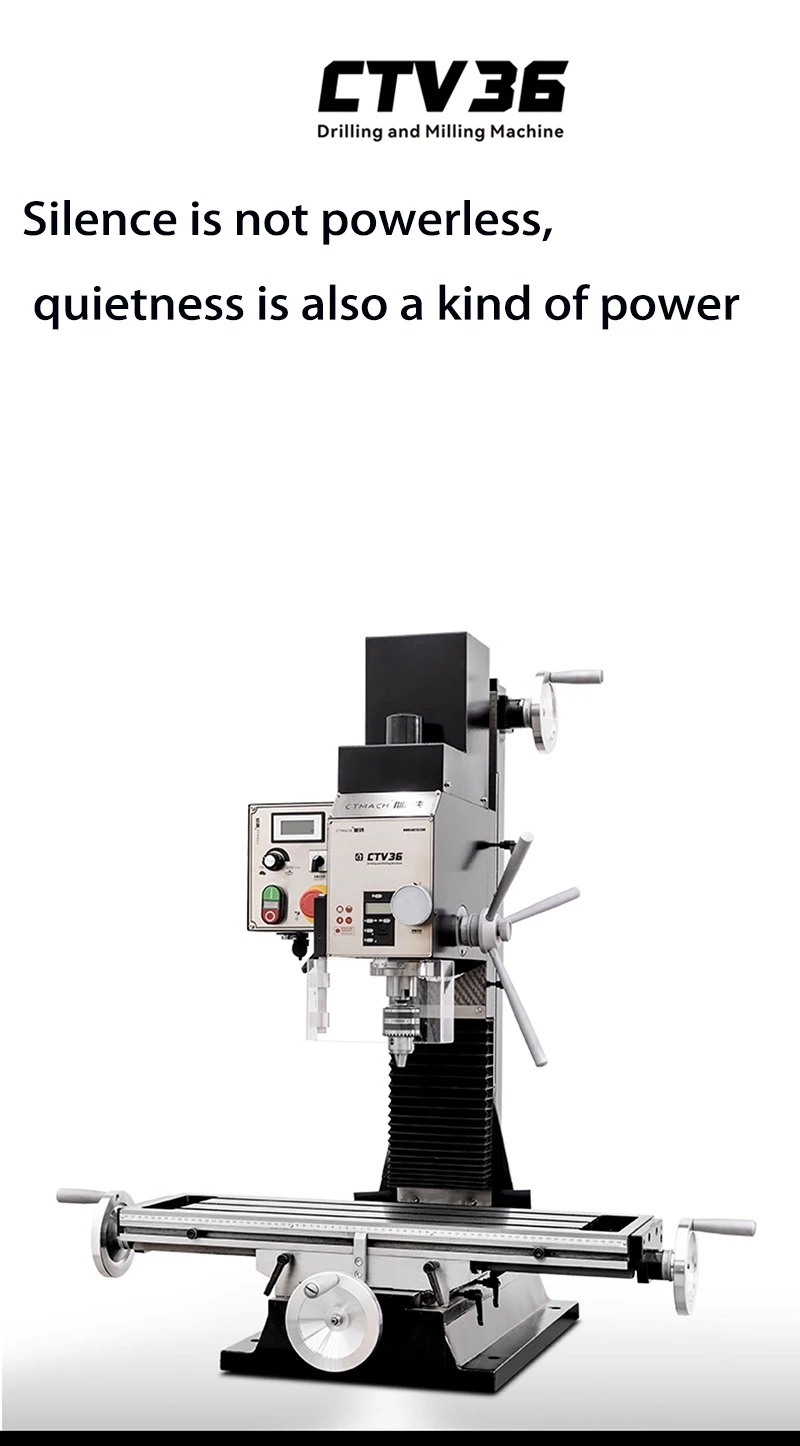

Silence is not weakness; quietude is also a form of strength

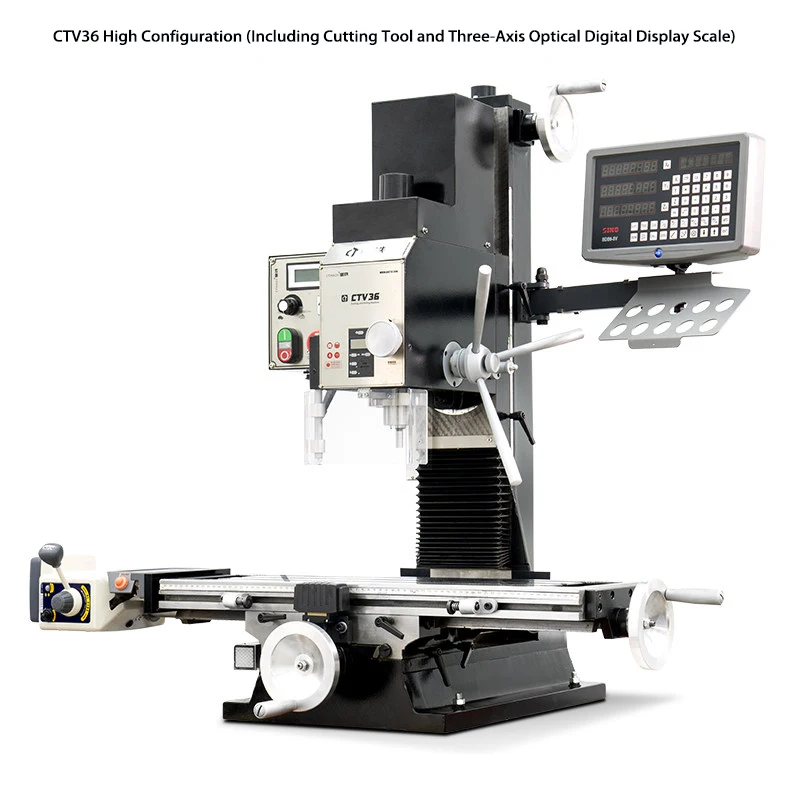

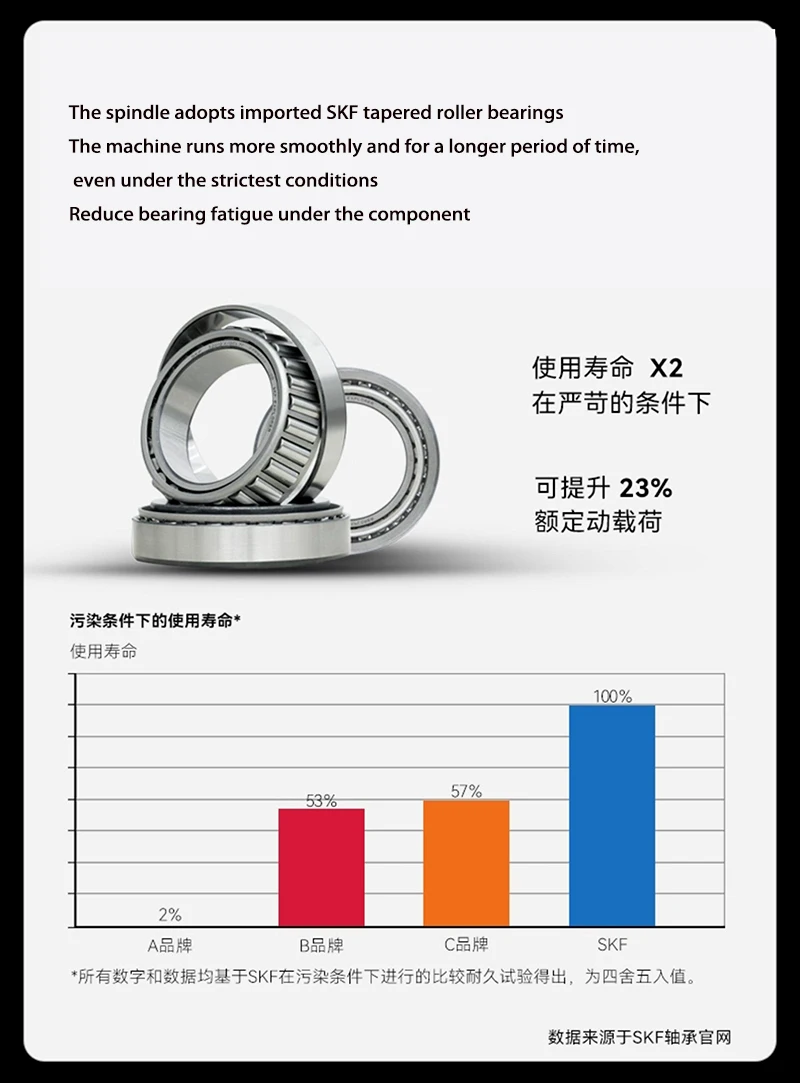

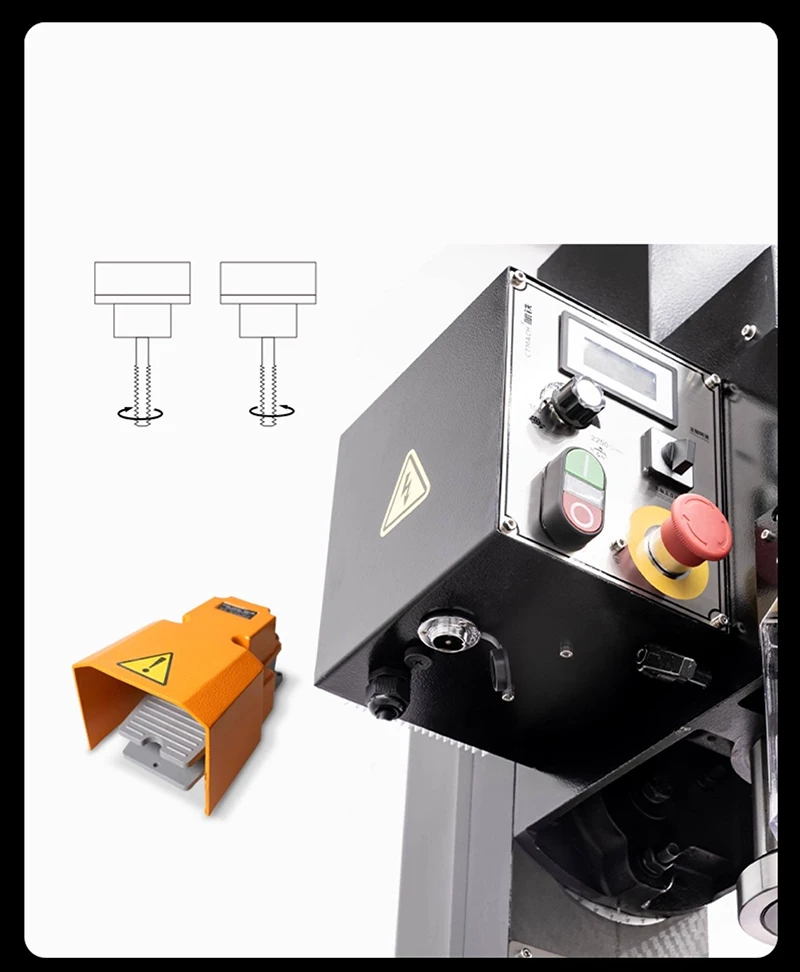

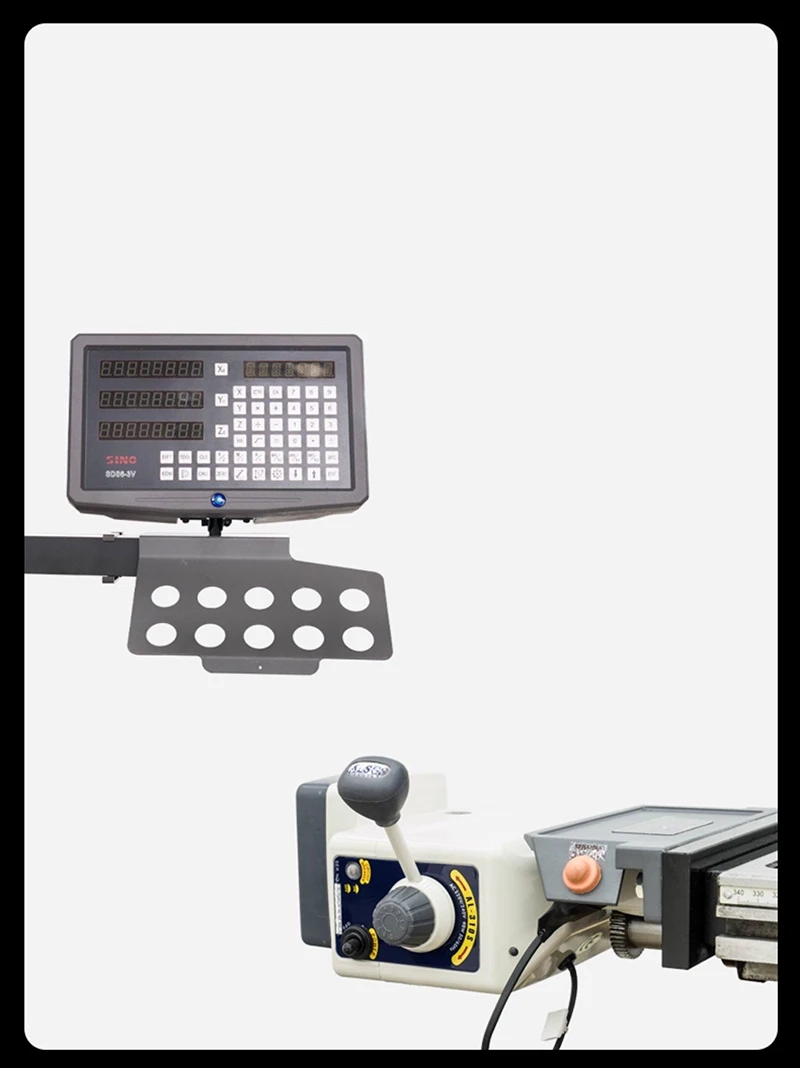

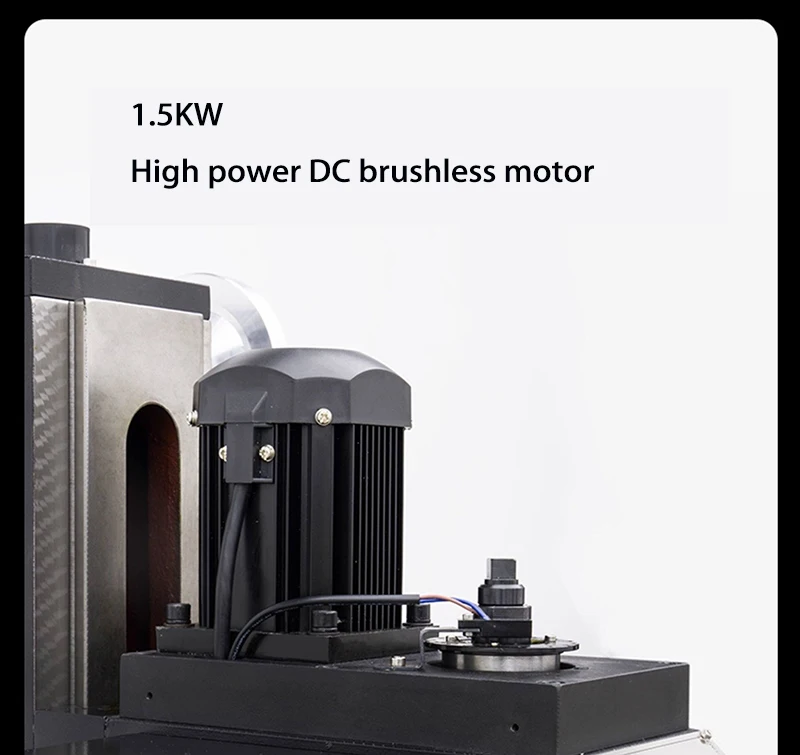

1.5KW brushless DC motor, spindle stepless speed regulation, Gates synchronous belt drive for smooth transmission and low noise, simple structure, and low maintenance: The spindle is equipped with imported SKF bearings; features a forward/reverse foot pedal switch interface for tapping function; can be fitted with a three-axis digital display scale and feed mechanism to significantly improve work efficiency. Three-axis dovetail guideways, with all surfaces precision ground and manually engraved for enhanced performance.

1. Maximum drilling diameter 36mm

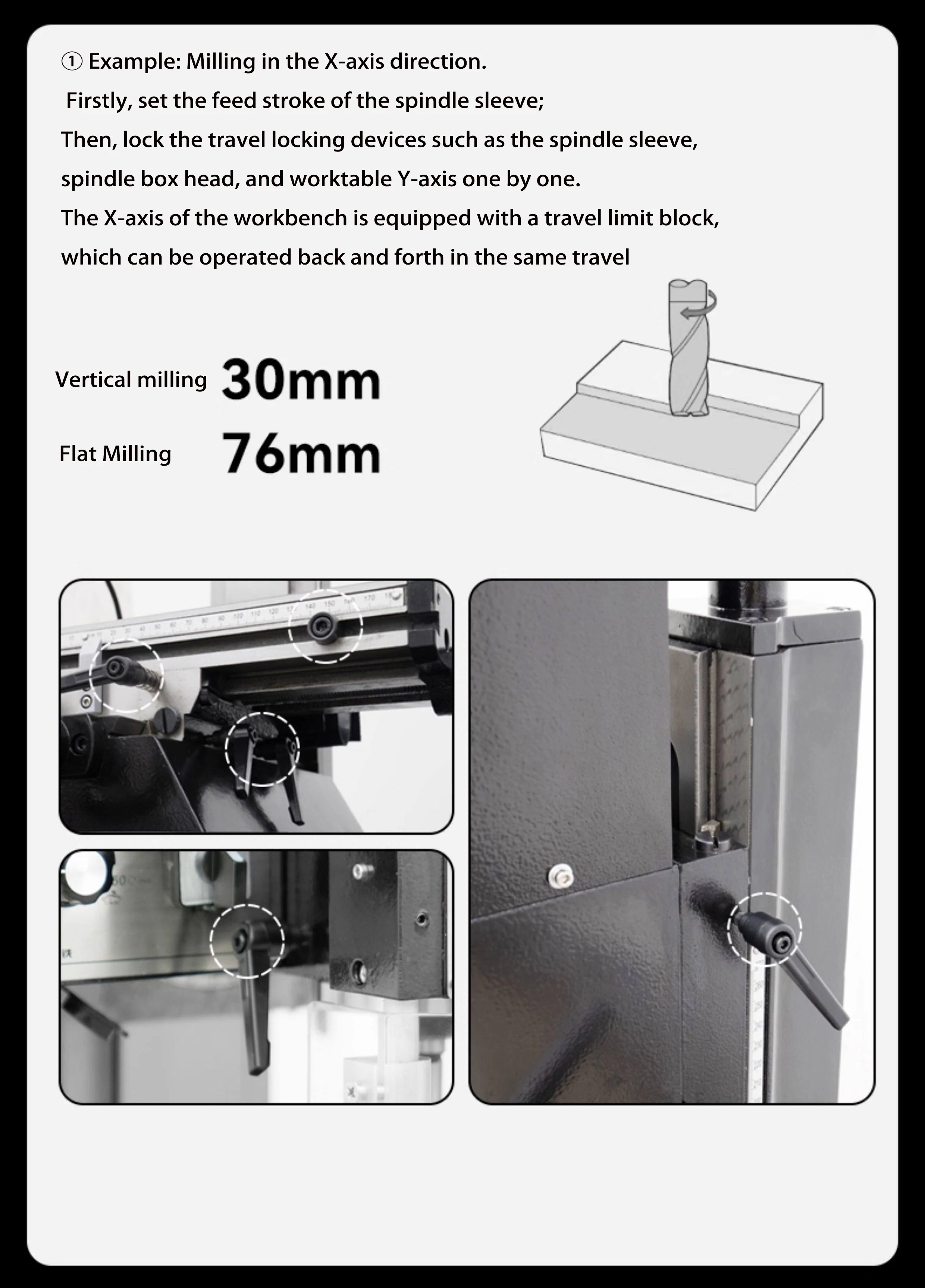

Maximum surface milling capacity of 76mm

3 Maximum vertical milling capacity 30mm

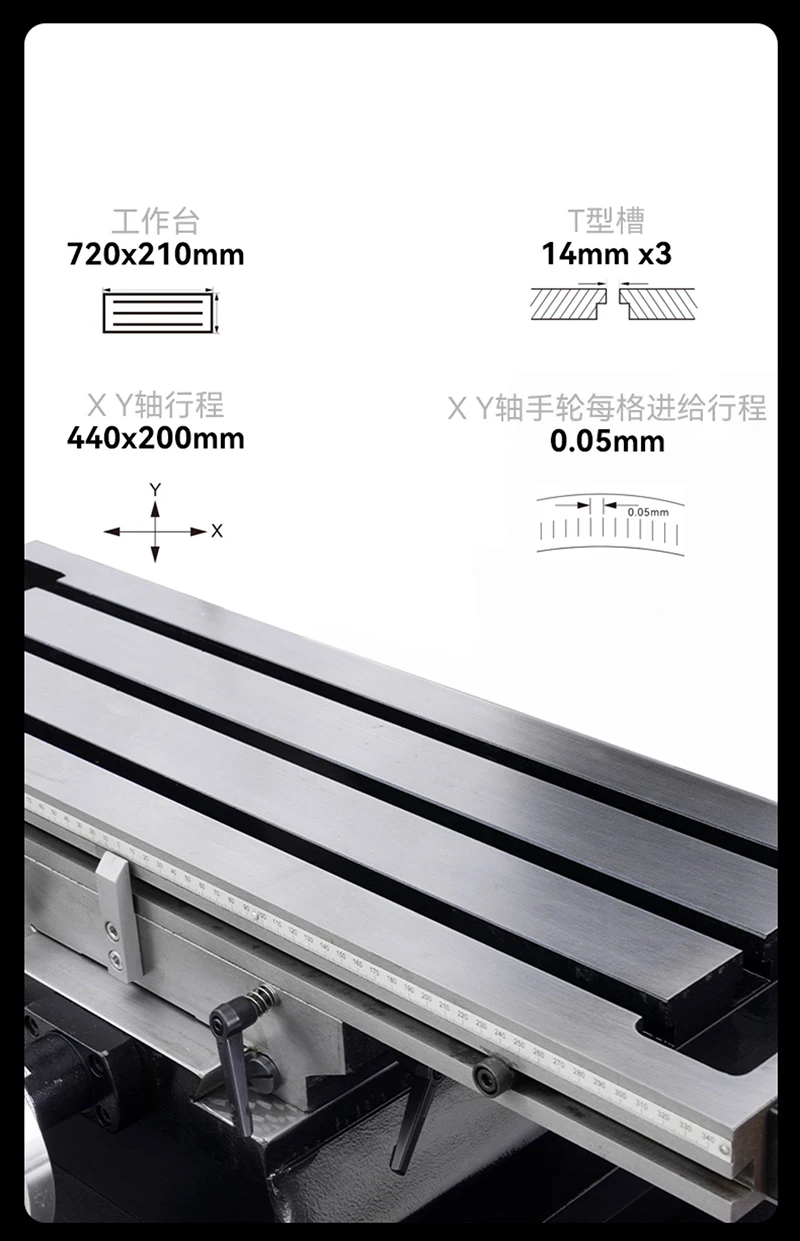

Workbench size 700x210mm

5 T-shaped groove size 14mm

6 X-axis stroke 440mm

7 Y-axis stroke 200mm

8 Z-axis stroke 400mm

9 machine tool size 100x70x100cm

10 packaging sizes 90x74x115cm

11 spindle taper MT3

12 spindle stroke 70mm

13. The distance from the spindle axis to the column guide rail is 190mm

14. The distance from the vertical axis end to the workbench is 470mm

15 spindle box left and right rotation angle ± 45 °

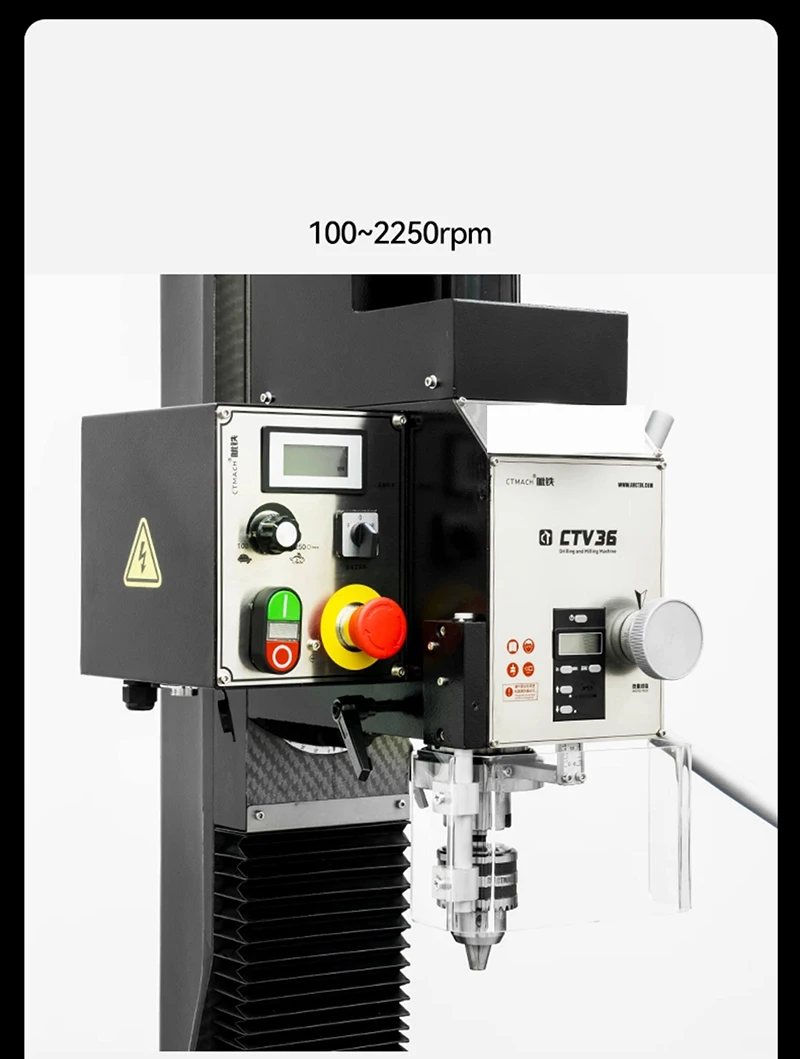

16 spindle speed 100~2250rpm

17 spindle speed series: continuously variable transmission

18 motor power 1.5KW

19 Net weight 220KG

20 gross weight: 240kg

The radial runout of the taper hole axis is 0.01~0.02mm from the proximal end of the spindle to 100mm
