Efficient Magnetic Pump Liquid Filling Machine | Versatile Applications

From R44046.83
  • Color:

  • Voltage:

10 in stock

Buy With Confidence

100% Safe Payment


;

  • Description

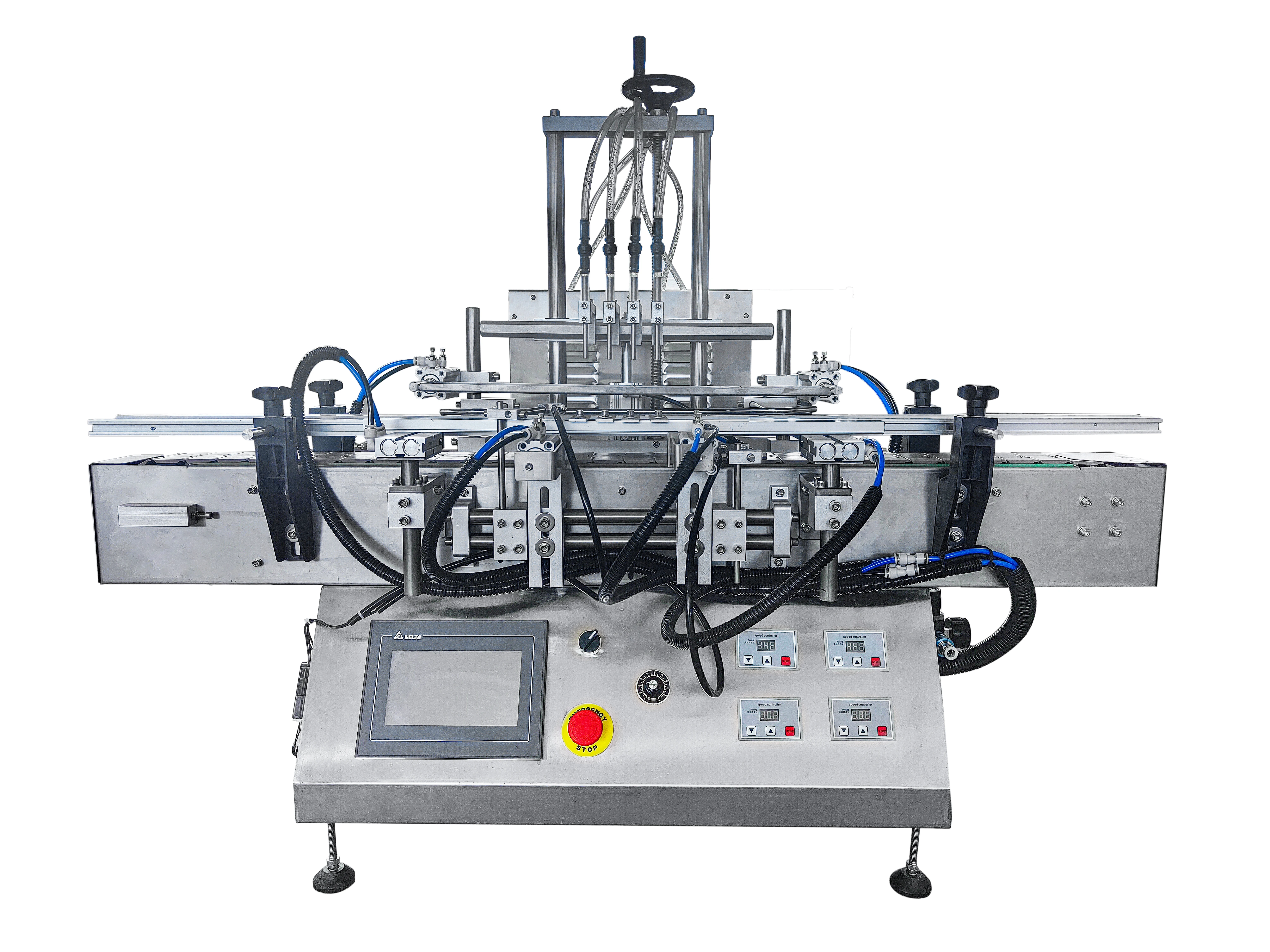

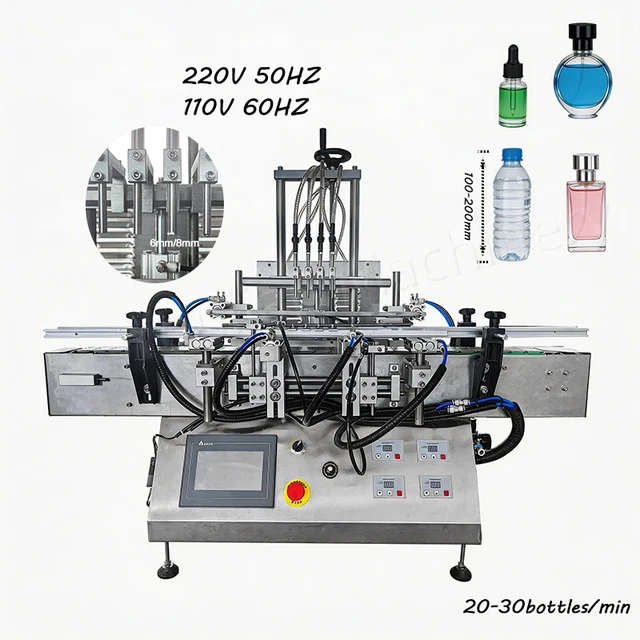

    The 4-Nozzle Magnetic Pump Gear Pump Liquid Filling Machine is a high-precision, efficient solution for filling various liquids like juice, essential oils, inks, and perfumes. Equipped with a chain conveyor belt and stainless steel magnetic pumps, this machine offers precise filling and versatile use.

    The 4-Nozzle Magnetic Pump Gear Pump Liquid Filling Machine for Juice Essential Oils Inks Perfumes

    Reminder:

    Dear buyer:

    The shipping cost shown for this item is CIF to the port of destination because the large volume and weight of this item, The default is shipping by Sea. please be sure to contact the seller before buying and tell us the shipping method you need. The seller will tell you the shipping cost according to your country and address. Please be sure to negotiate with the seller before buying. Otherwise, the seller will not bear any transportation costs, thank you for your cooperation!

    Products Description

    High Precision | Efficient Operation | Versatile Use
    This desktop filling machine is equipped with chain conveyor belt,compared with the leather conveyor belt, this one is with larger capacity,this makes it suitable for filling larger volume and transport them faster and more smooth.

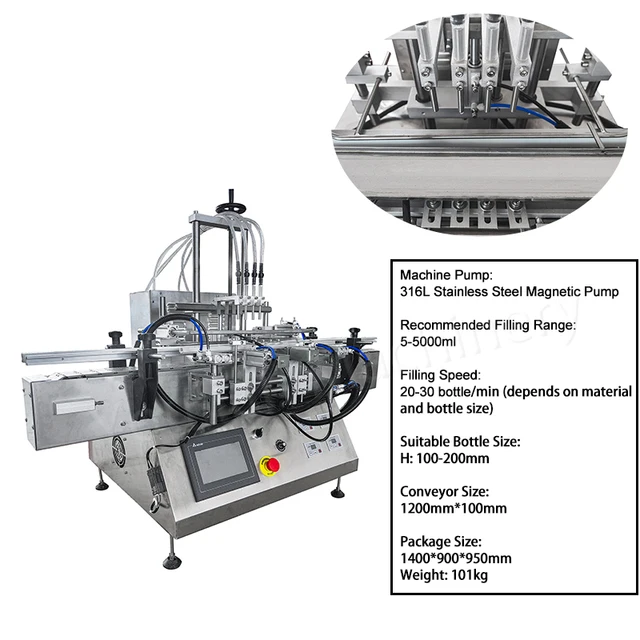

    Product Parameters

    Power Supply

    220V/110V 50-60Hz 400W

    Machine Pump

    316L Stainless Steel Magnetic
    Pump

    Recommended Filling Range

    5-5000mL

    Filling Speed

    20-30 bottles/min

    (depend on material and bottle
    size)

    Suitable Bottle Size

    H: 100-200mm

    Conveyor Size

    1200mm*100mm(L*W)

    Diameter of Filling Nozzle

    OD 6/8mm

    Filling Time Range

    0.01-999.9s

    Filling Accuracy

    ±0.5%

    Size of Air Compressor
    Connector

    OD 8mm

    Machine Size

    About 1200*700*850mm

    Gross Weight

    About 101kg

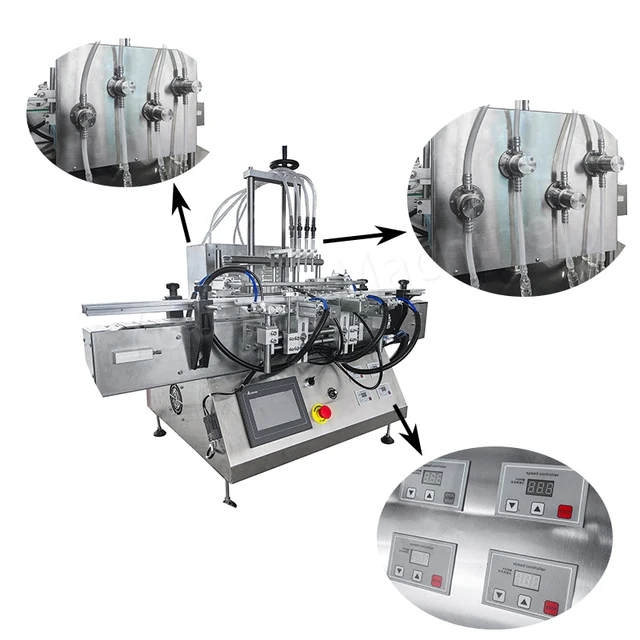

    Product Feature

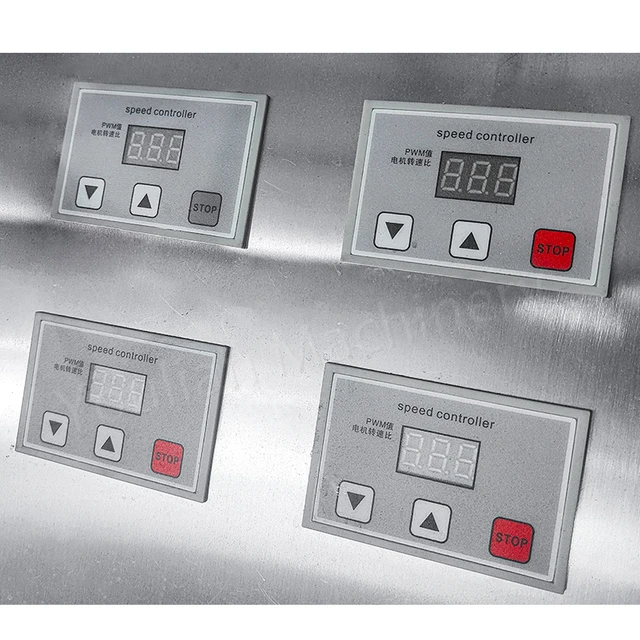

    • Control Panel

    Through PLC control panel,you can set parameters like filling time and delay time.It has automatic counting function and the number of filled bottles will display on the panel. Visual and accurate the language of the panel can be customized as needed.

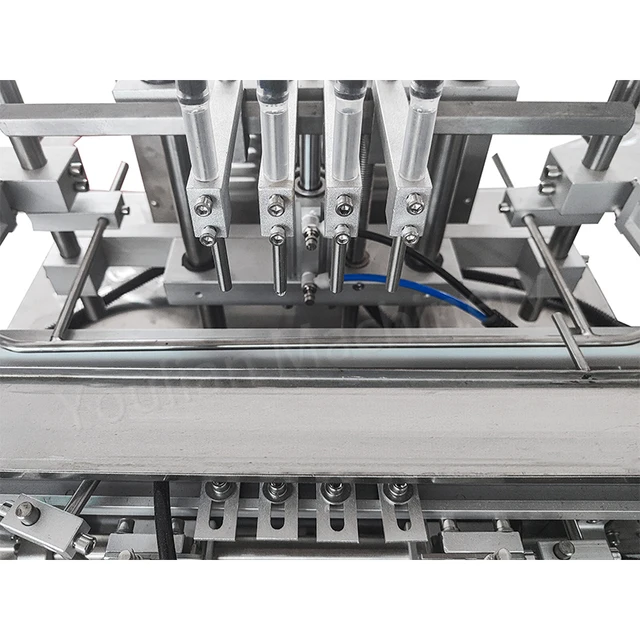

    • Filling Heads

    The filling speed and time of four heads can be controlled separately.Easy to operate.With anti-dripping function,they can fill liquid accurately.The height of the heads can be adjusted as needed, making it suitable for bottles of different heights.

    • Electric Eyes

    They are designed for detectingMA the bottles and controlling the machine to fill liquid automatically, saving labor cost.The sensitivity of electric eyes can be adjusted by the sensitivity regulator. Easy and convenient.

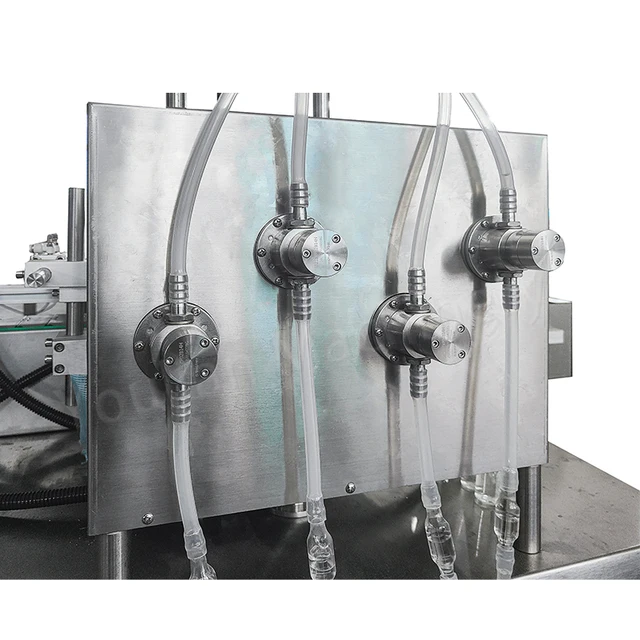

    • Magnetic Pump

    Equipped with stainless steel magnetic pumps,it can fill liquid accurately, ensuring production quality. The pumps have the advantage of high temperature resistance and corrosion resistance. Durable and reliable.

    • Conveyor Belt

    With chain conveyor belt, it has a large bearing capacity, which can transport heavy containers smoothly and stably. Improve work efficiency. The conveying speed can be adjusted by the black knob.

    Application

    The magnetic pump filling machine is high precision that it can be used to fill pure water, essential oil, solution, eye drops, inks, perfume etc.
