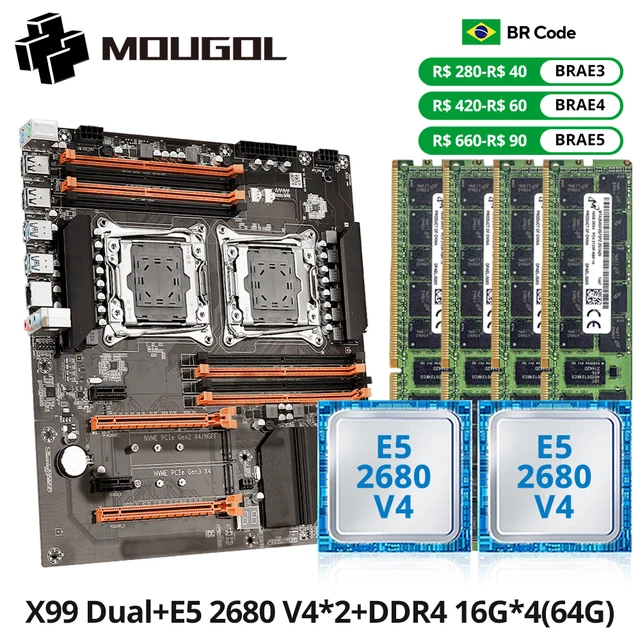

Get the ultimate gaming experience with the MOUGOl X99 Dual CPU Gaming Motherboard Set featuring the powerful lntel Xeon E5 2680 V4. This high-performance set is perfect for server computer hosts and ensures top-notch gaming performance.
Please check our Bundle carefully before purchasing.Purchase a single motherboard. We don't send CPU and memory. Please check carefully.
Differences between packages

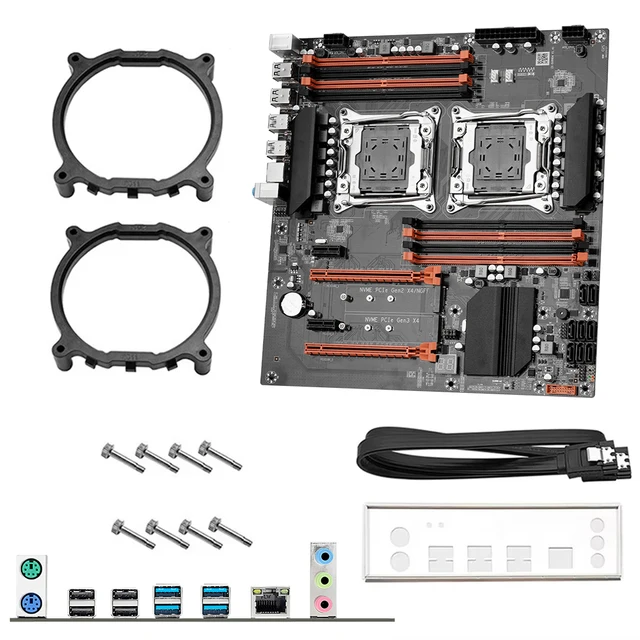

Motherboards: 1*MG-X99 Dual D4 motherboard
Motherboard+CPU: 1*MG-X99 Dual D4 +E5 2680 V4 CPU*2
Motherboard+CPU+RAM: 1*MG-X99 Dual D4 +E5 2680 V4 CPU*2+DDR4 16G*4
Please confirm the differences between the packages before purchasing. If you mind, please do not place an order

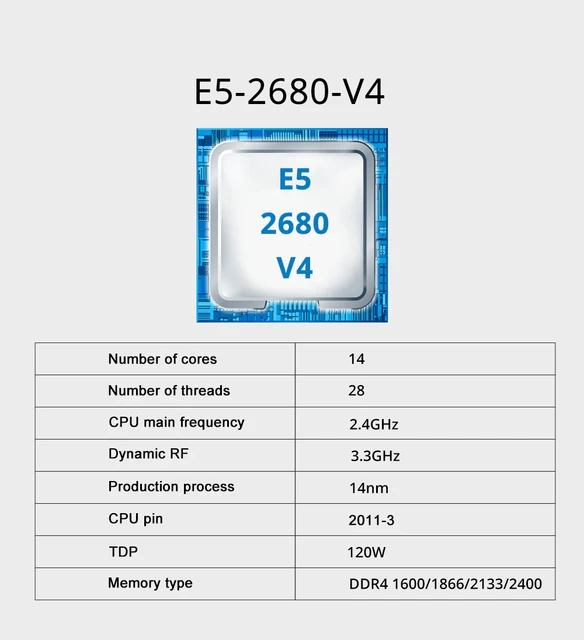

CPU:
Processor Series: Intel Xeon
Model number: E5 2680 V4
Processor Speed: 2.4GHz
Maximum core frequency: 3.3GHz
Processor Socket: LGA2011-3
Process: 14nm
Memory type: DDR4 1600/1866/2133/2400
The number of CPU cores: 14
The number of threads: 28
L3 cache size (MB): 35 MB
Wattage: 120 Watts
cpu will be final double tested before shipping
In this kit (motherboard+CPU+RAM), motherboard is brand new, CPU and RAM is used(not new). We fully combos testing before delivery. and make sure the whole set can works perfectly. Since CPU and RAM have used marks on it, please don't place order if you mind. (The old and new level of RAM+CPU cannot be controlled, and it is sent randomly.)

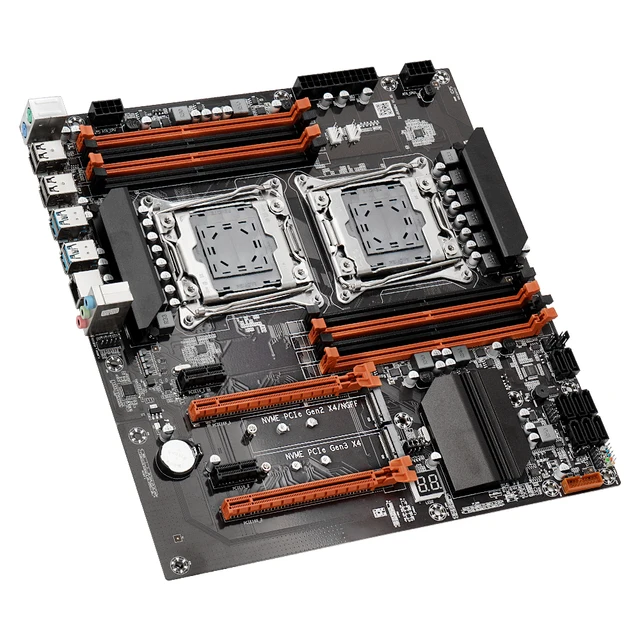

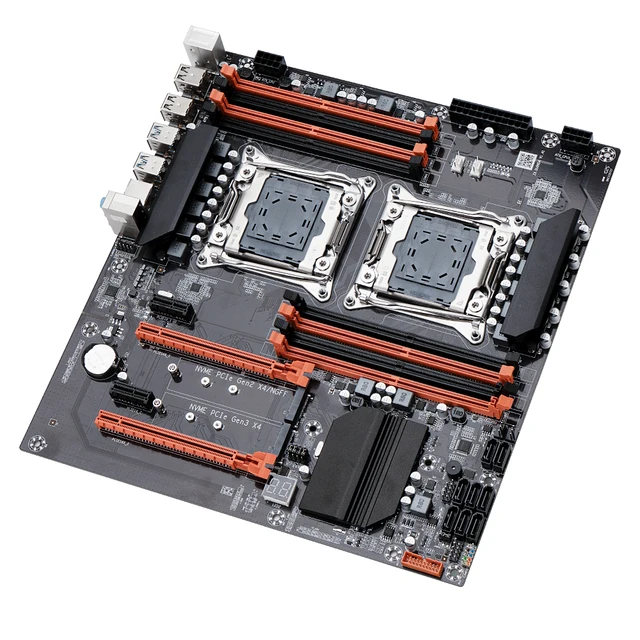

Motherboard Specifications:
Chipset: Intel X99 (C612 Chip)
Memory System:
Four-Channel DDR4 Slots
Supports 2133/2400/2800MHz Frequencies
Maximum Expansion: 256GB (32GB Single Stick Support)
Storage Expansion:
6×SATA 3.0 6Gbps Ports
1×M.2 PCIe 3.0×4 Slot (NVMe Support)
1×M.2 SATA/PCIe Dual-Mode Slot
Graphics Support:
2×PCIe 3.0×16 Slots (AMD CrossFire Ready)
2×PCIe 2.0×1 Slots
Networking:
Realtek RTL8111H Gigabit LAN (PXE Boot Support)
Audio: Realtek ALC662 6-Channel High-Fidelity Sound

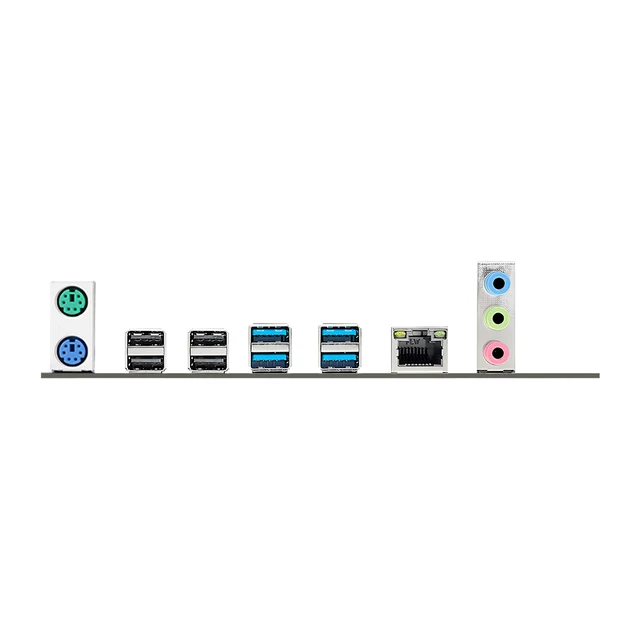

I/O Ports:
4×USB 3.0 + 4×USB 2.0
1×PS/2 Combo Port
1×COM Serial Port
1×F_AUDIO Header
Power Connectors: 24pin + 2×8pin ATX
Dimensions: 290×280mm (ATX Form Factor)
Note:
(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).
(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
(3)For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can't, we don't recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.
(4) Install the memory. All RAM needs to be installed in outermost two slots (orange and black slots) first. The two innermost slots on the motherboard cannot be used separately. The memory needs to be inserted into the same color slots；If you are using only one CPU, install the memory in the outermost slot next to the CPU.
(5) For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110°-120°)This is normal. The actual temperature can be tested with a body thermometer.
# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!
