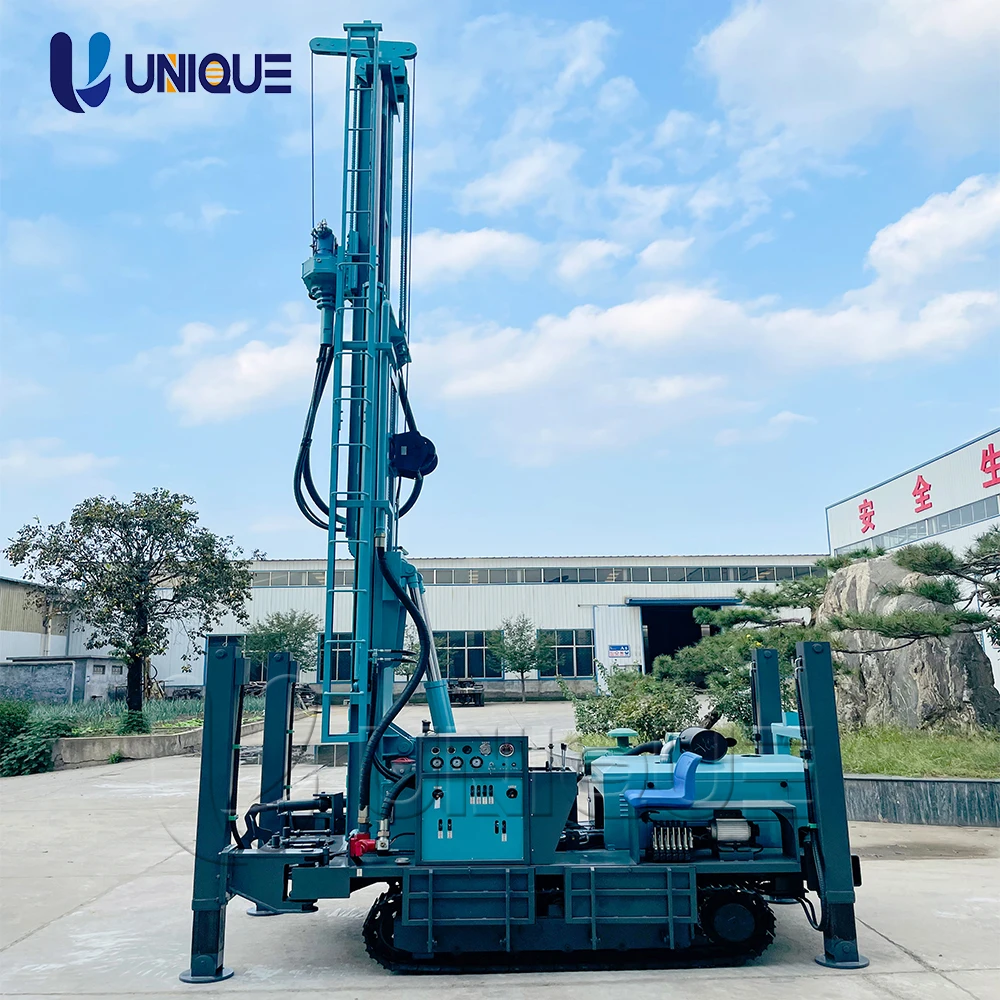

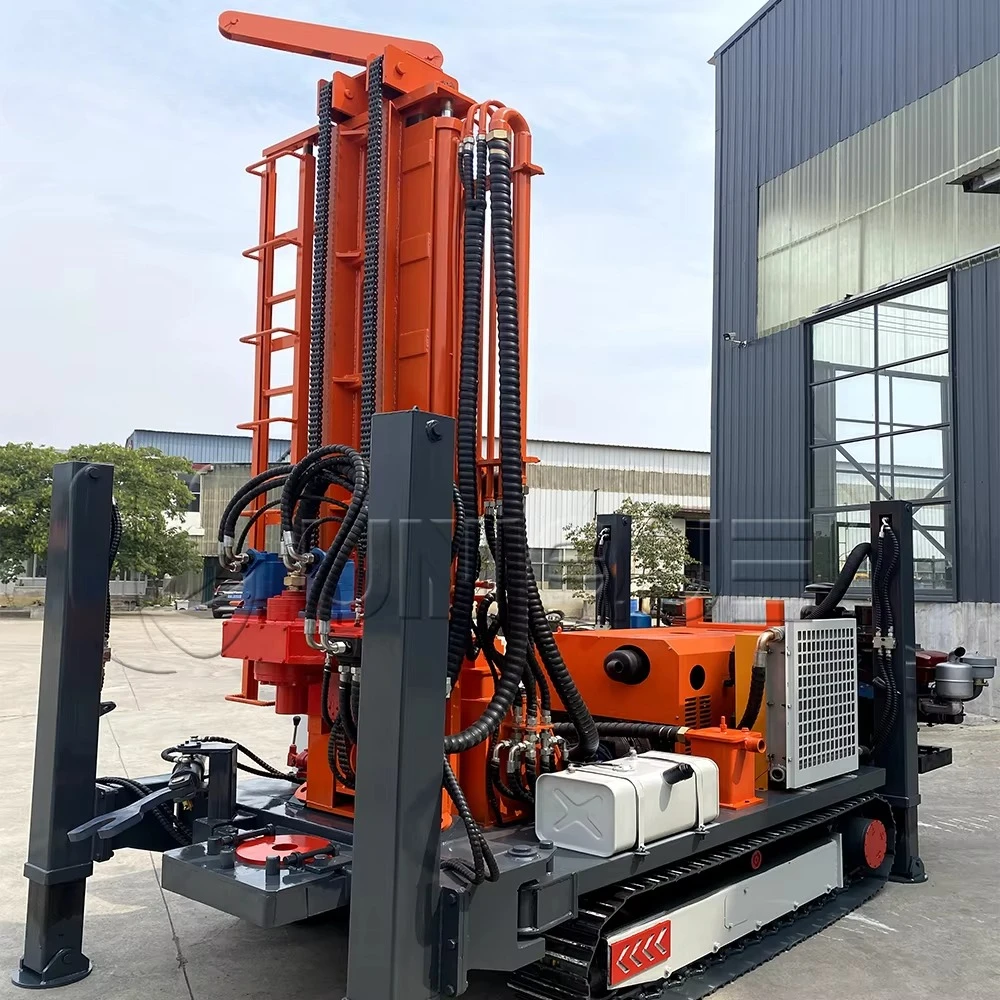

Powerful Diesel Water Well Drilling Rig for Diverse Geological Conditions

R209150.83

  • Color:

  • Plug Type:

100 in stock

Buy With Confidence

100% Safe Payment


;

  • Description

    Introducing a highly efficient diesel water well drilling rig equipped with a hydraulic drive and high-performance engine, offering versatility in various drilling methods. It ensures energy-efficient operations and durability for long-term use.

    Please Note 📝
    1. This is a customized product.The link price is not the final price The price shown is a deposit only. The final cost depends on your specific requirements and destination port.
    2. Contact Jane for more details. We’re here to help you get exactly what you need. 💗
    3. Add us on WhatsApp for exclusive service and limited-time discounts!|

    📧 Email: [email protected]
    ☎️ WhatsApp/WeChat/Mobile: +86 13837137368

    For more details or assistance, please don’t hesitate to reach out!



    Product Parameters

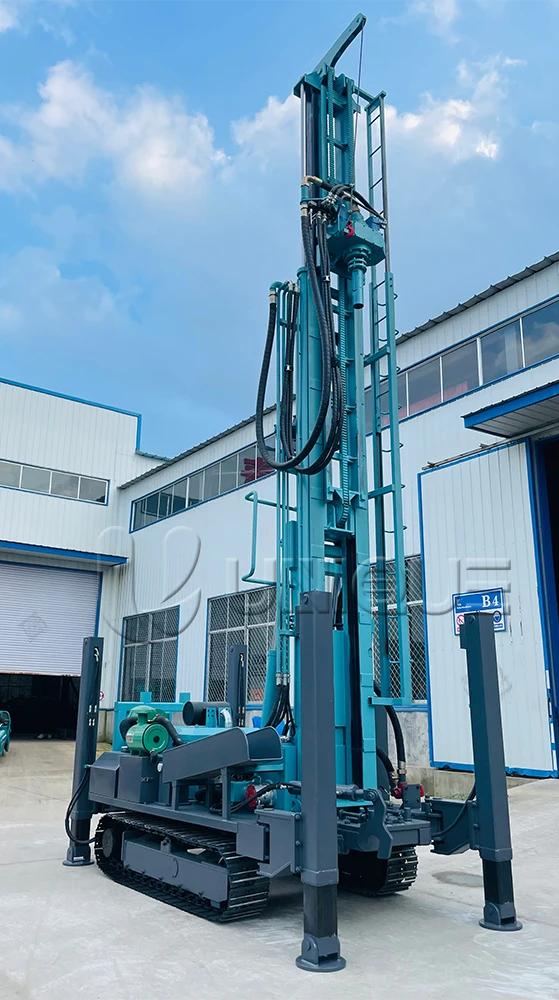

    Mobile 260m Crawler Water Well Drilling Rig
    Model
    UY260 Water Well Drilling Rig
    Drilling depth(m)
    400m
    Drilling Parameter(mm)
    100-305mm
    One time advance lenth(m)
    6.6
    Engine Power(kW)
    92
    Air pressure(Mpa)
    1.7-3.3
    Air consumption(m3/min)
    17-35
    Drill pipe diameter(mm)
    89/102/108
    Drill pipe(m)
    6m
    Rig lifting force(T)
    24
    Rotary torque(N.m)
    6500-9000
    Dimension(mm)
    5900*2100*2850
    Weight(T)
    10

    Powerful Power: Hydraulic drive + high-performance diesel engine, suitable for a variety of geological conditions.

    Flexibleand Maneuverable: The tracked chassis design adapts to complex terrain and easily traverses mountainous, muddy, and narrow working conditions.
    Versatile Expansion: Optional air compressor and mud pump support a variety of drilling methods (air drilling, mud drilling, and percussion drilling).
    Energy-Efficient and Efficient: The optimized hydraulic system design reduces fuel consumption and increases operating efficiency.
    Durable and Reliable: Thickened drill pipe and reinforced frame make it suitable
    for long-term, high-intensity operations.

    How Does Water Well Drilling Rig Works?

    ️Site Preparation Before drilling begins, the site is prepared by clearing vegetation, removing topsoil, and leveling the ground to create a suitable working area for drilling equipment and personnel. ️Selection Of Drill Rig Various types of drilling rigs are used for open-pit drilling operations, depending on the depth of the water well, the hole diameter, geological conditions and the need for construction efficiency. The main types of water well drilling rigs used are tracked water well drilling rigs and tyre-type water well drilling rigs.
    ️Drilling Process
    Drilling rig setup: fix the drilling rig base, adjust the verticality, and connect the power system (diesel engine or electric motor). Drilling preparation: install the drill bit (select alloy drill bit, PDC drill bit, etc. according to the rock formation), and calibrate the drill rod length. Drilling operation: Rotary drilling: transmit power through the drill rod, and the drill bit rotates to break the rock formation. Impact drilling: use impact force to penetrate hard rock formations (such as air hammer drill bits). Cuttings removal: If the water well drilling rig uses a circulation system, the cuttings need to be cleaned up, and the mud pump injects mud into the borehole, carrying the cuttings back to the ground to keep the hole wall stable. Sampling and logging: Extract cuttings samples at different depths to analyze the location of the aquifer; use logging equipment to detect the integrity of the hole wall and the distribution of groundwater. Monitoring and control: Real-time monitoring of parameters such as drilling pressure, rotation speed, and mud flow, and adjust operations to avoid stuck drill or hole collapse.
    ️Completion And Wellbore Stabilization Casing: Install a water filter pipe (such as a bridge filter) in the target aquifer section to prevent mud and sand from entering.Cementing: Inject cement slurry into the gap between the casing and the hole wall to fix the casing and isolate pollution.Well washing: High-pressure water flushes the water filter pipe to dredge the pores of the aquifer and increase water output. ️Post-Drilling Activities Equipment evacuation: Dismantle the drilling rig and clean up oil and waste on site.Site reclamation: Backfill the topsoil and restore vegetation to reduce the impact on the ecological environment.Water quality testing: Collect water samples to test the content of microorganisms and minerals to ensure that they meet the use standards.
    Products Description
    Suitable for agricultural irrigation, industrial water, and residential drinking water drilling.The crawler water well drill rig, develope by YG ., is a highly efficient drilling device designed for diverse geological conditions and water use scenarios worldwide. Utilizing a hydraulic system as its core power transmission system and equipped with a high-power diesel engine, the water drilling rig ensures stable operation even in off-grid environments. It also supports flexible options for high-pressure air compressors,suitable for rock and hard formations. and high-efficiency mud pumps,suitable for soil and soft formations. It can cover drilling needs in a variety of terrains, from plains to mountains and plateaus, meeting drilling requirements for agricultural irrigation wells, industrial production wells, rural drinking water wells, and geological exploration boreholes.
    Our Advantage







    High-efficiency power system

    Under complex geological conditions, whether facing hard rocks or thick soil layers, this drilling rig can move forward and complete drilling tasks efficiently with its strong power.
    Intelligent hydraulic control
    The load-sensitive hydraulic system is a major technical highlight of the UY Crawler water drilling rig. Which can adjust in real time according to the working condition and automatically match the pressure and flow rate, effectively reducing energy consumption by up to 15%. This not only saves operating costs, but also makes the operation of the drilling rig more accurate and smooth, which can easily cope with both delicate drilling operations and complex geological changes, greatly improving construction efficiency.


    All-terrain adaptability

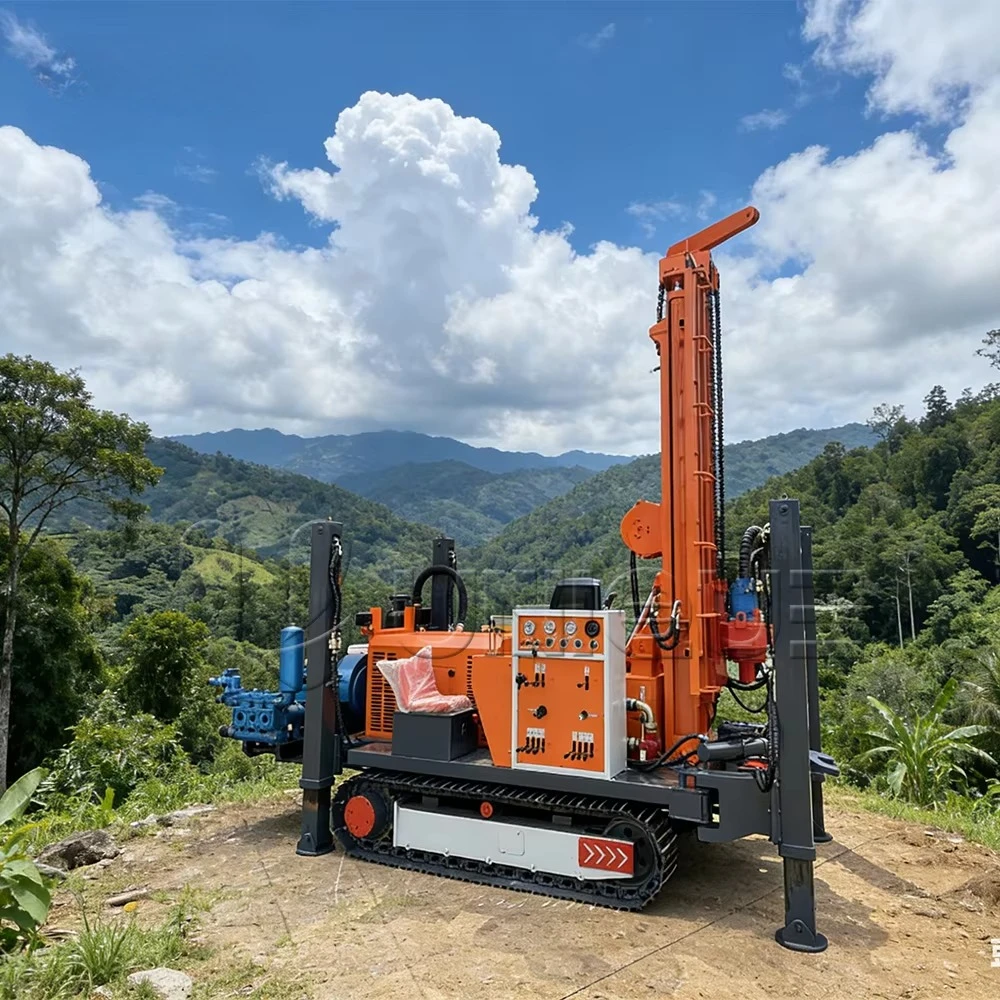

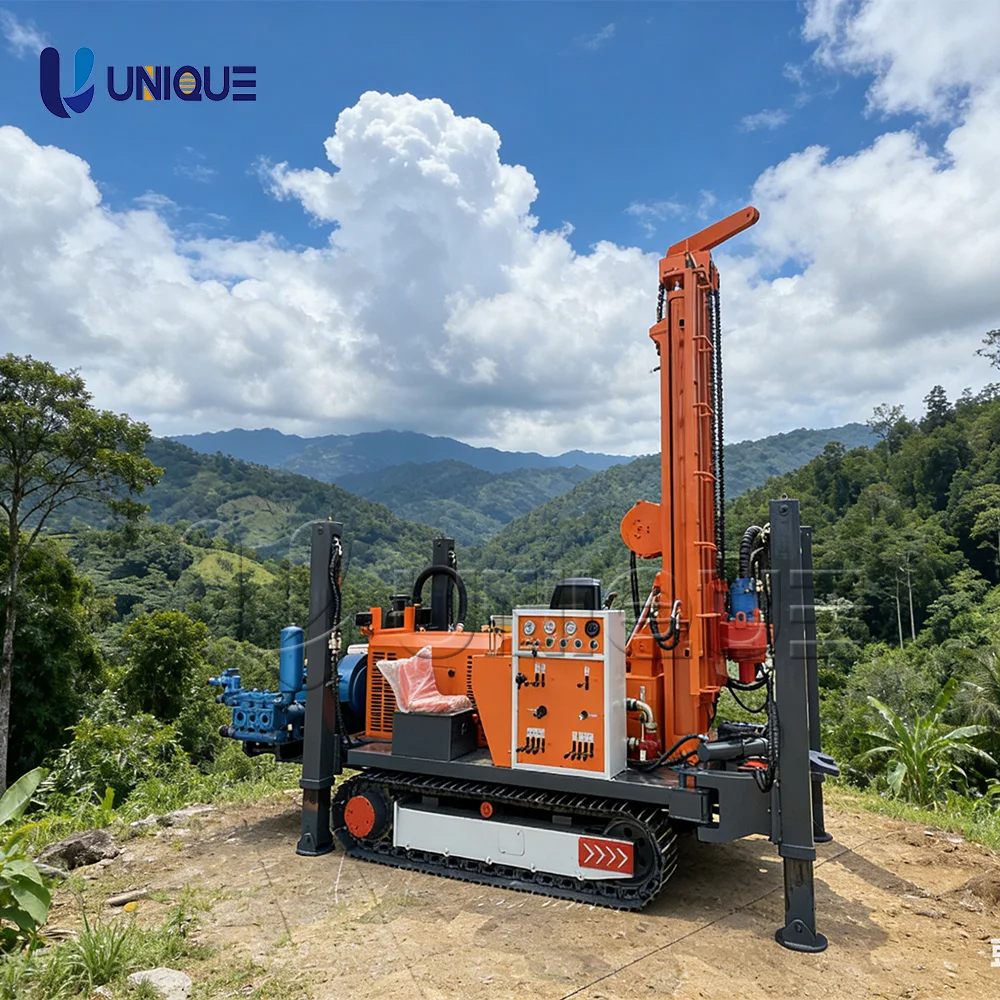

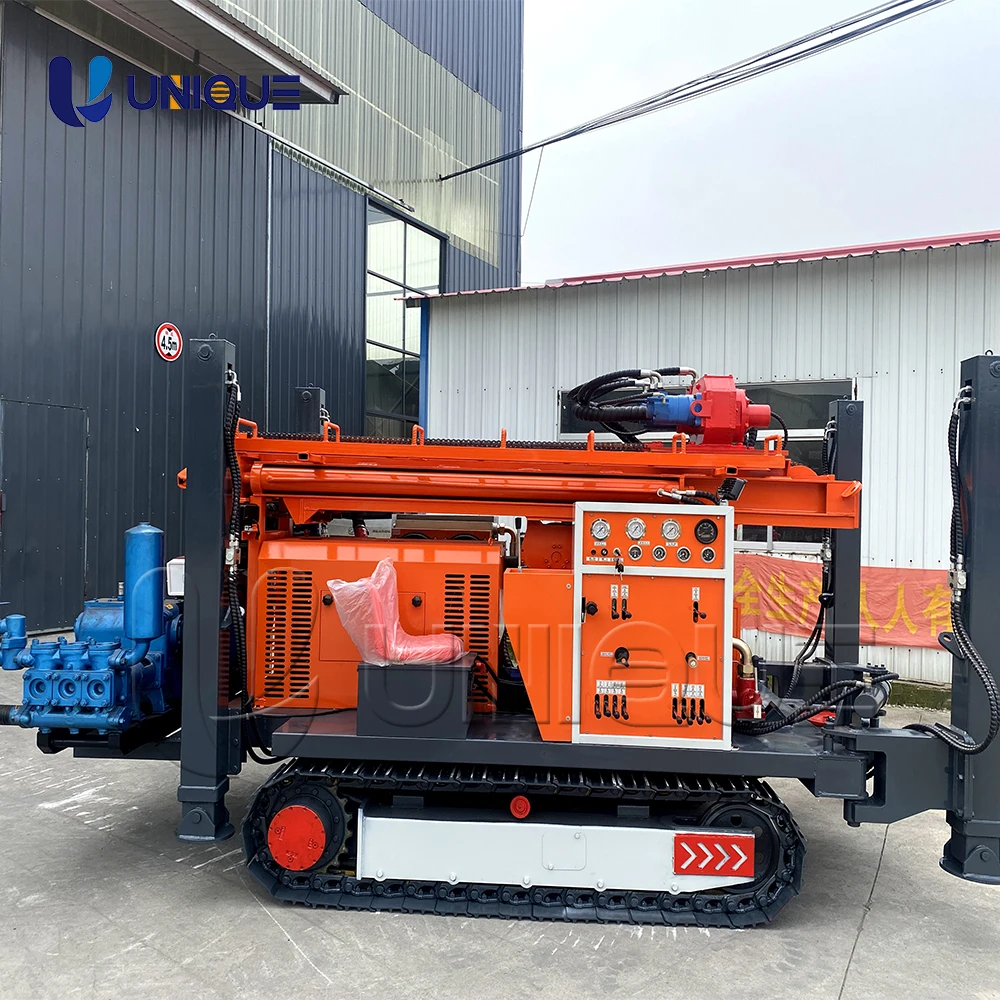

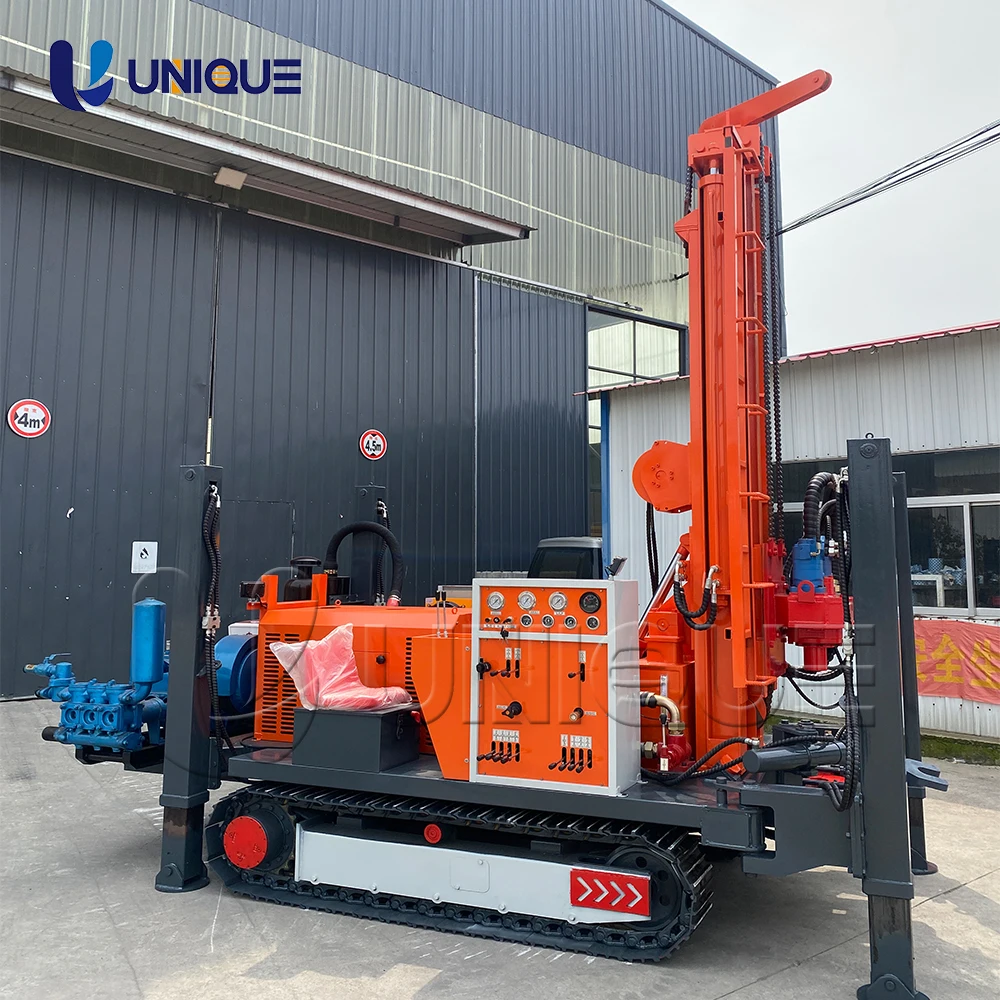

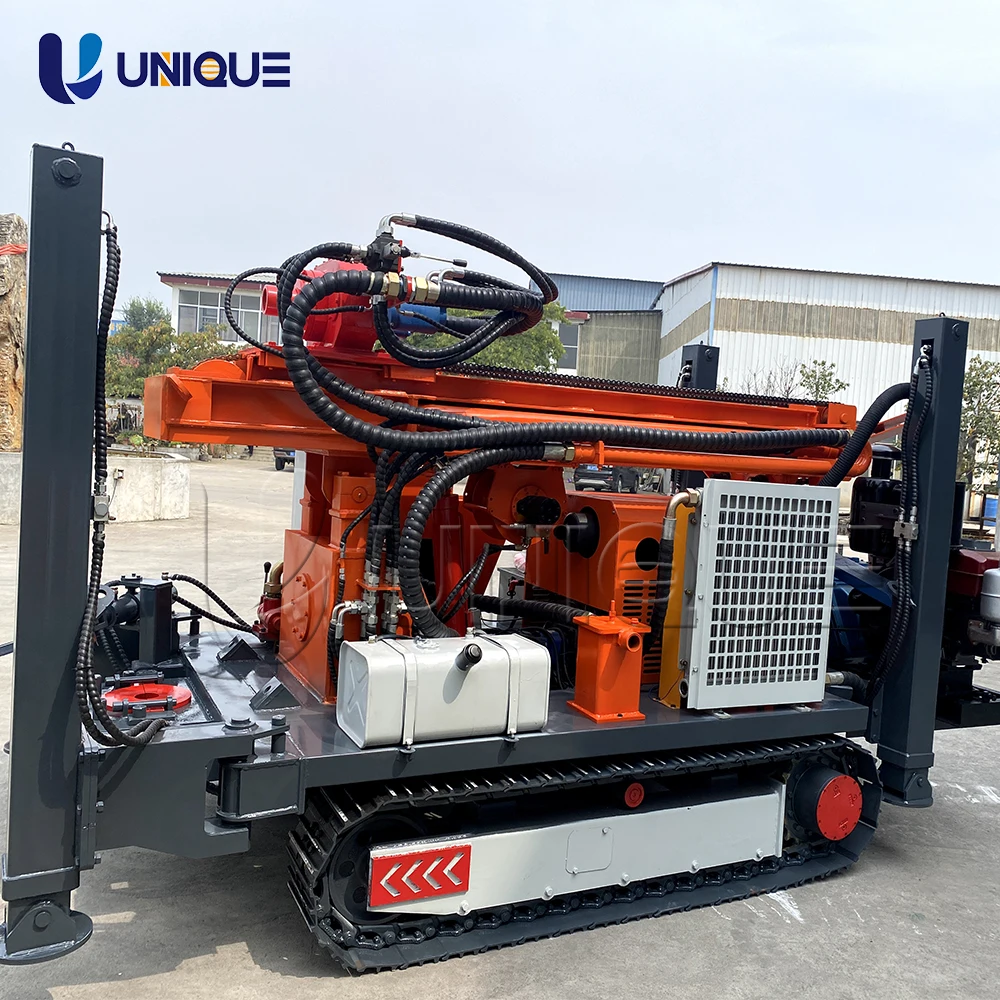

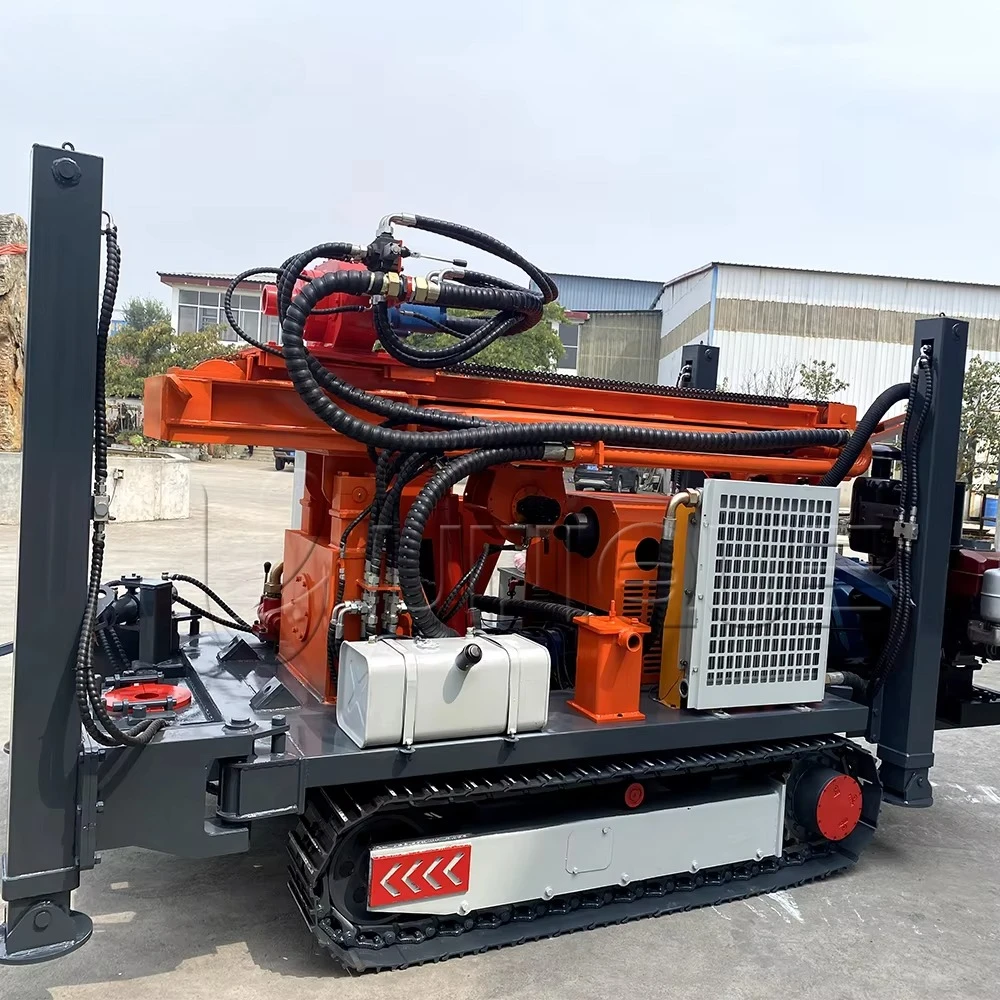

    UY crawler water well drilling rig is equipped with rubber tracked chassis and four-leg hydraulic leveling system, which has excellent all-terrain adaptability. It can work stably on terrains with a slope of ≤15°, whether in the mud of wetlands or in the rugged mountainous terrain, it can walk smoothly. The rubber tracked chassis not only provides strong grip to ensure the rig’s stable driving on complex terrain, but also reduces the damage to the ground and protects the ecological environment of the construction site.
    Robust structural design

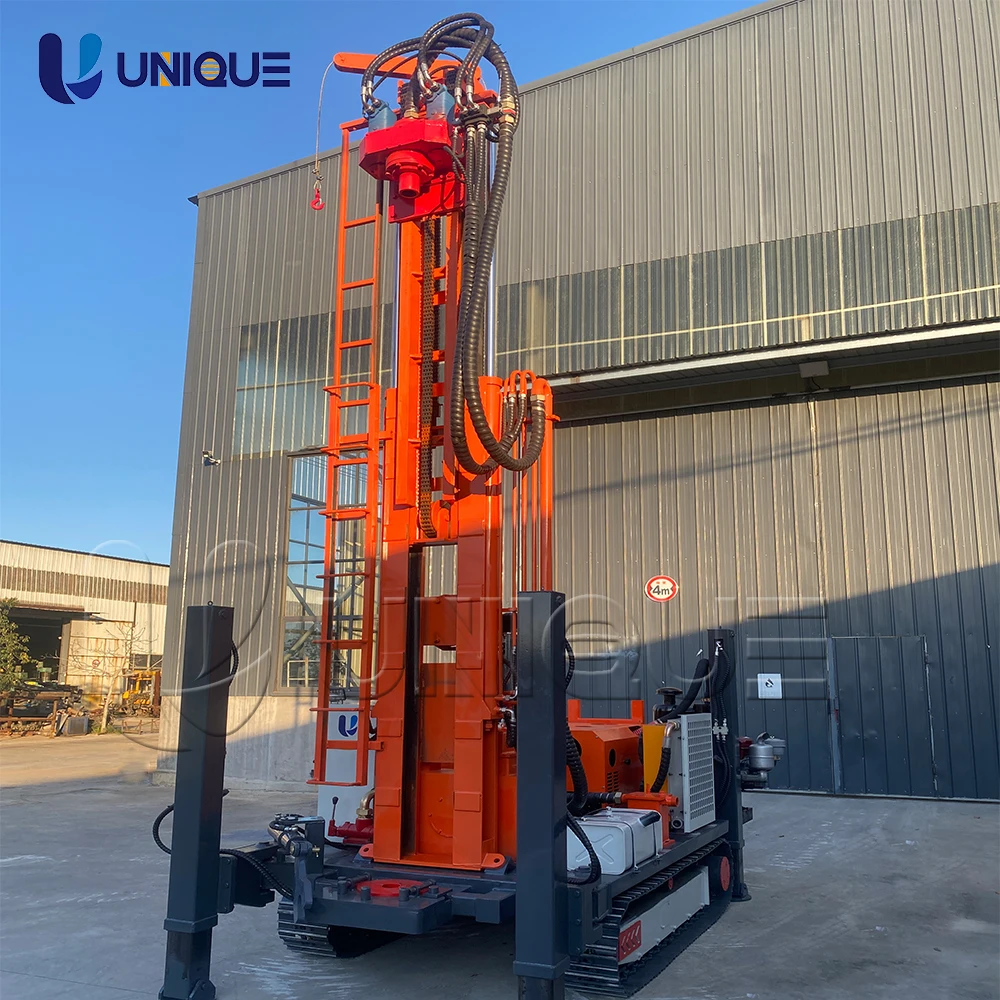

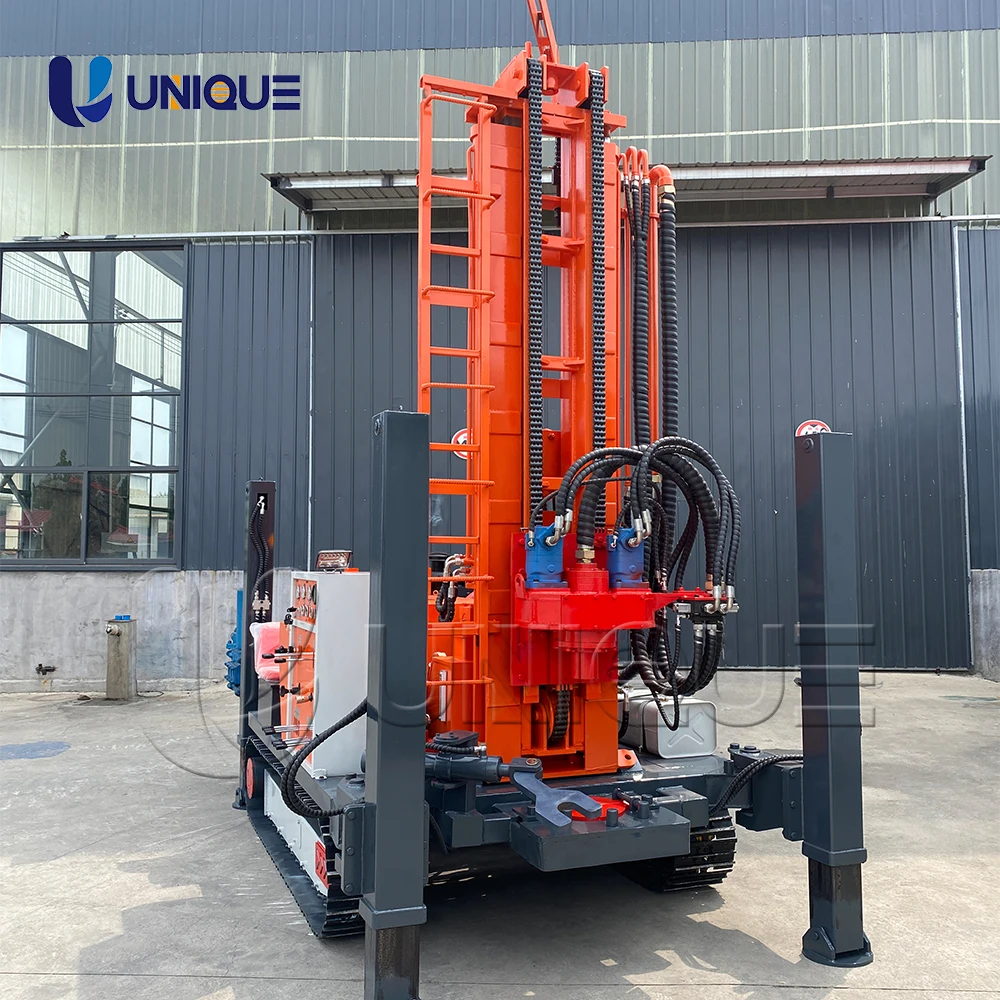

    The unique cage on the main engine forms a double-wheel support structure, which gives the rig strong impact resistance. During the drilling process, especially when encountering complex geological conditions, this structure can effectively disperse the impact force and ensure the stability and reliability of the UY crawler drilling rig. The vertical box is fixed with four sets of bearings to ensure that the rotary machine has sufficient rigidity, which can easily cope with even when facing complex geological conditions such as gravel layer and ensure the smooth advancement of drilling operations.

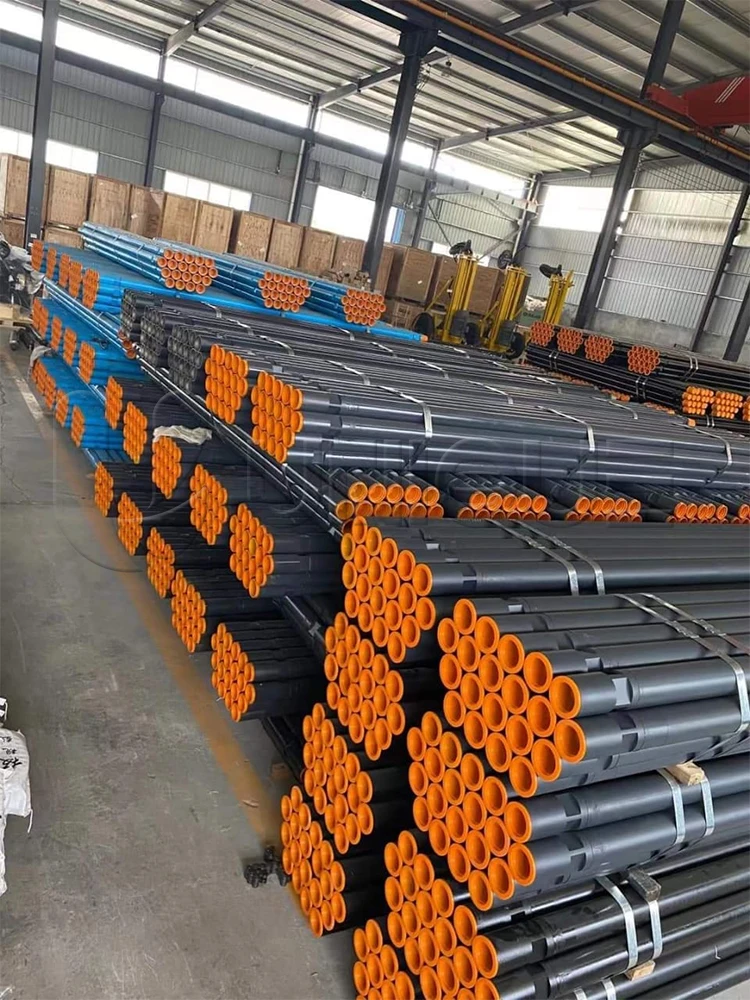

    High-quality drill pipes configuration
    UY crawler water well drilling rig adopts roughening nitriding process, with good rigidity and large transmission torque. During the drilling process, it can effectively ensure the stability of the drill pipes, avoid bending, breaking and other problems, and ensure the perpendicularity and precision of the drilling. High-quality drill pipe not only improves the drilling quality, but also extends the service life of the equipment and reduces the frequency and cost of replacing the drill pipes.

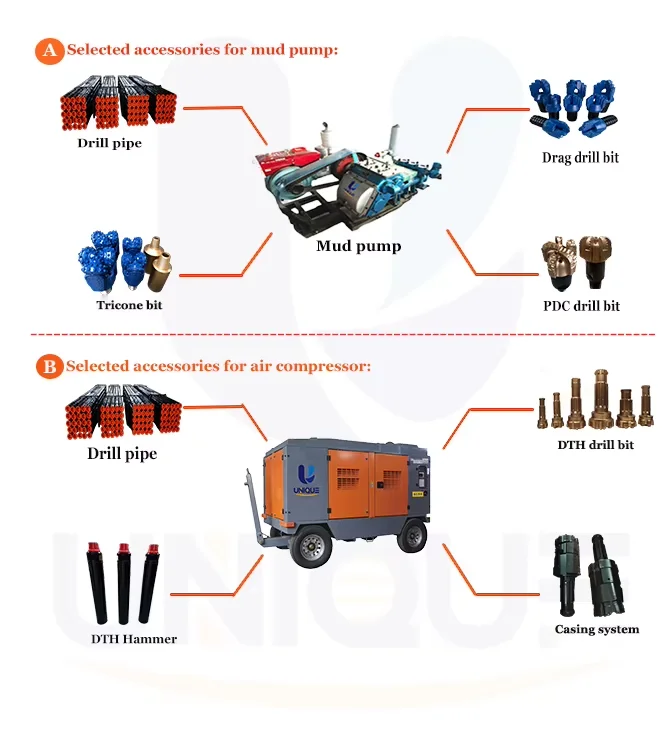

    Optional A:Drilling Rig + Mud Pump Working principle: rotary drilling utilizes rotating drill bit to grind the ground material, provides rotating power through hydraulic system, and is equipped with mud pump to pump mud to bring the drilling chips from the bottom of the well to the ground.Applicable conditions: suitable for most geological conditions, especially in clay or medium soft rock formations. Advantages:Wide adaptability, equipped with three gears to drill into various formations, especially effective in hard rock. Low investment costs, suitable for projects with less stringent time requirements Relatively simple equipment, low maintenance costs. Optional B: Drilling Rig+ Air Compressor Working principle: impact drilling utilizes the hydraulic system to drive the drill bit up and down, and the pressure is provided by the air compressor, which improves the drilling efficiency by striking the strata and breaking the rock and soil through the powerful impact, and the air discharged from the air compressor carries the debris away from the ground. Applicable conditions: suitable for rock formation. Drilling rig + air compressor, air percussion. Advantages: high drilling efficiency, can drill 30-50 meters per hour A+B:Combined Drilling Rig + Mud Pump + Air Compressor Working principle: combining the advantages of percussion and rotary drilling, realizing more efficient drilling through the double action of rotation and percussion. Applicable conditions: It is suitable for alternating soft and hard strata, and can quickly break through the hard-to-drill layer. Applicable conditions: It is suitable for alternating soft and hard strata, and Advantages: It can improve drilling efficiency, break through formations of different hardness, and has strong adaptability. It has better drilling effect on hard rock, gravel and other hard-to-drill formations.

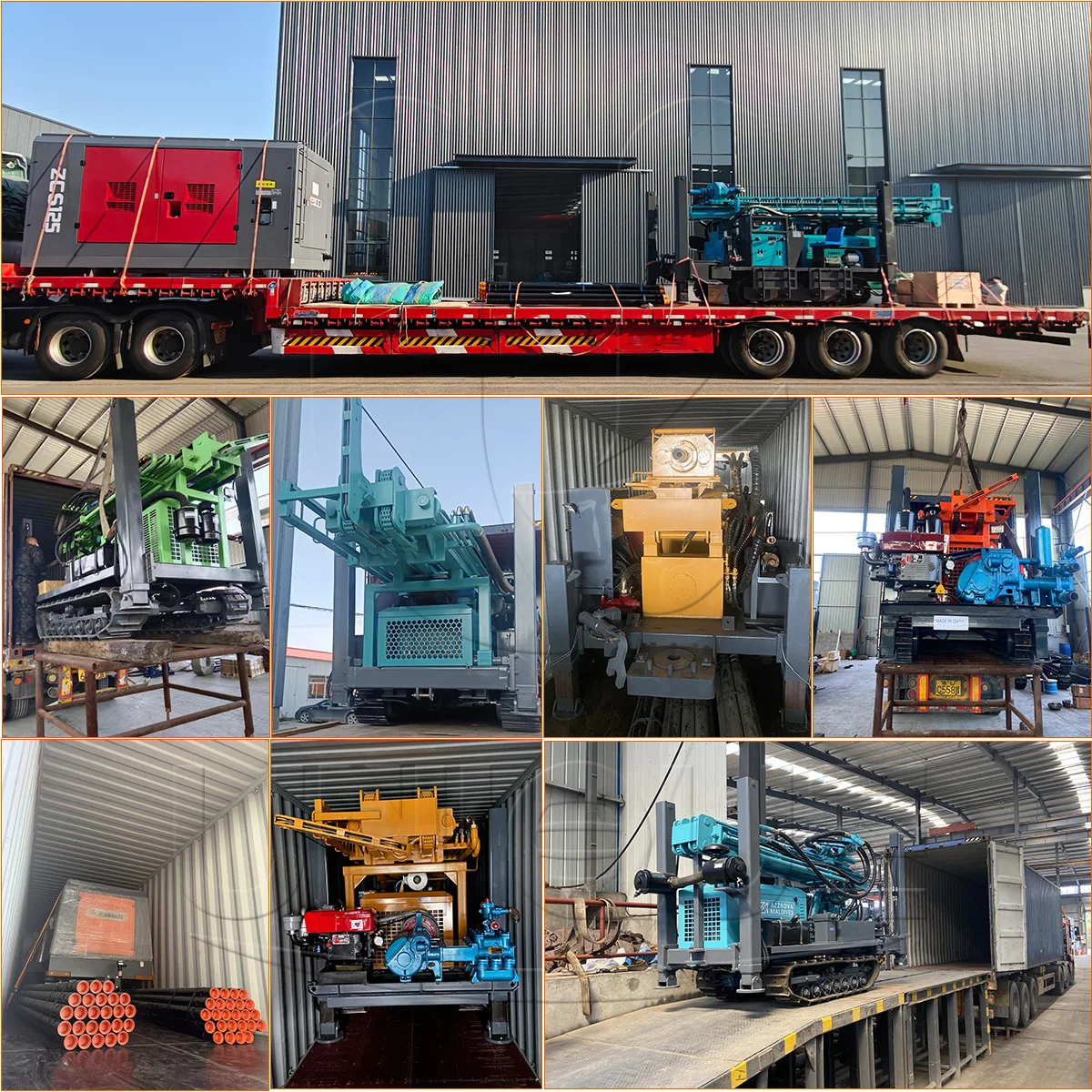

    Package

    Company Profile


    Our company
    Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development,production and sales of mining, tunnel construction, sandblasting equipment, road and bridge construction equipments and so on.Webelieves that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad. All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!






    FAQ
    Q1: How deep can your water well drilling rigs drill? A: Depending on the model, the drilling depth can range 180-1200m. Customers can choose the appropriate model based on their needs. Q2: Can it be used in hard rock formations? A: Yes. Combined with air drilling or hammers, it can efficiently drill through hard rock formations such as granite and basalt. Q3: Are air compressors and mud pumps standard features? A: They are optional and can be selected based on different working conditions. Mud pump: Required for use in water-rich conditions, in a variety of geological conditions, from soft soil to medium-hard rock, with drilling speeds of 10-15 m/h. Mud is injected into the bottomhole, which then carries cuttings out of the wellbore through the drill pipe and drill bit. During drilling, the mud carries cuttings, cools the drill bit, and protects the wellbore wall. Air compressor: Suitable for use in arid areas and hard rock formations, with hole diameters generally less than 12 inches. High-pressure air drives the impactor up and down, thereby driving the impactor drill bit for drilling. While dusty and noisy, they are highly efficient, with a speed of 40-45 m/h. Q4: How many people are needed to operate a drilling rig? A: Typically, 2-3 people are required, including the operator and support personnel. This depends on the project. Q5: What terrains can the drilling rig operate? A: Crawler drills: Suitable for mountainous areas, muddy and sandy terrain, soft formations, and narrow construction sites. They offer strong off-road capabilities and excellent stability. Wheel-mounted drill rigs: Suitable for areas with convenient road access, plains, and urban projects, they offer fast mobility and high transfer efficiency. Truck-mounted drill rigs: Mounted on a truck chassis, they are suitable for long-distance transfers, field construction, and the changing environments of construction projects, combining mobility and efficiency. Customers can select the most suitable drill rig type based on the construction location, drilling depth, and accessibility. Q6: Is fuel consumption high? A: Diesel power combined with an optimized hydraulic system results in lower fuel consumption than similar models, making them economical and durable. Q7: Can the product logo be customized? A: Yes, and customization LOGO is free. Customers can send their desired logo to the sales manager, who will arrange the customization. Q8: What is the typical delivery time? A: Delivery is generally within 7-15 days after receiving the balance payment. Q9: Do you provide after-sales service? A: We offer remote video guidance, operating manuals, and spare parts, and we can also send engineers for overseas installation training. Q10: What are your payment and shipping options? A: We accept payment methods such as T/T, T/T, and Letter of Credit (L/C). We offer shipping options by sea, land, or rail, and we ship worldwide.
