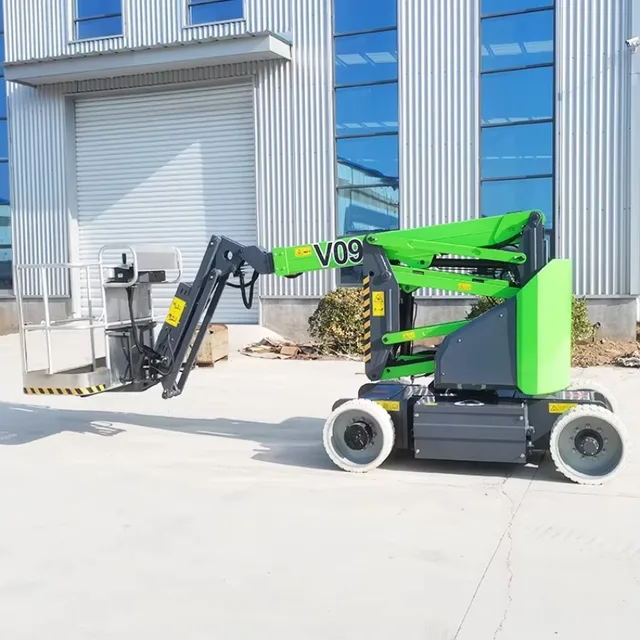

Image 1

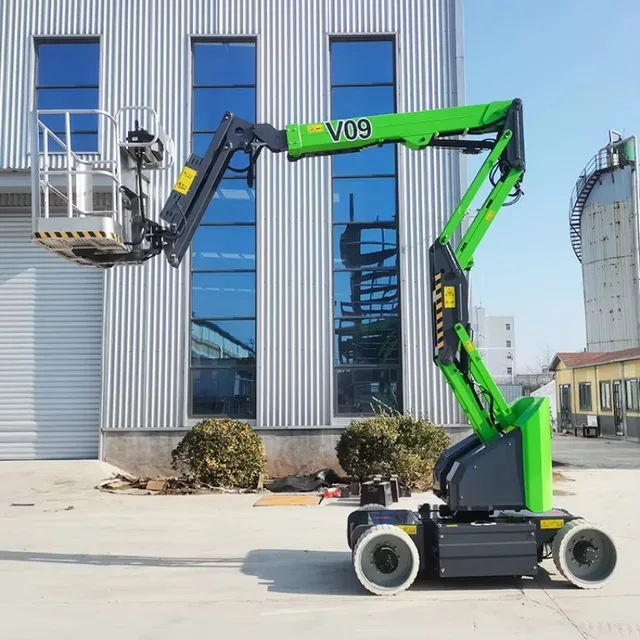

Image 2
Image 3
Image 4

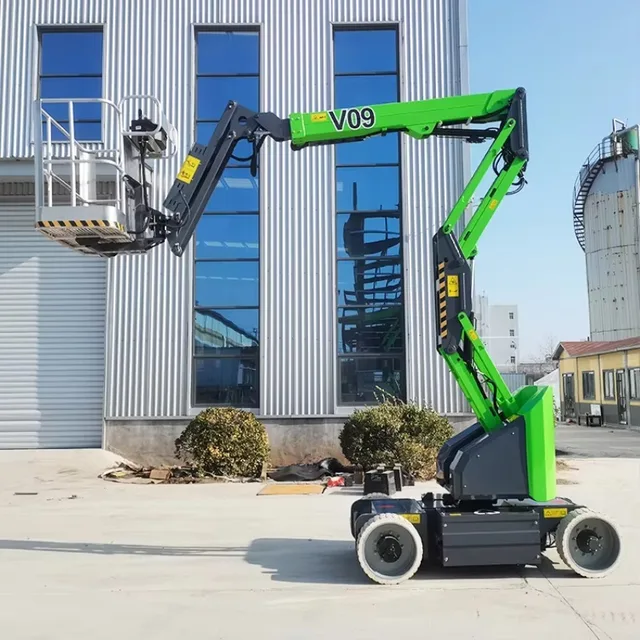

Image 5

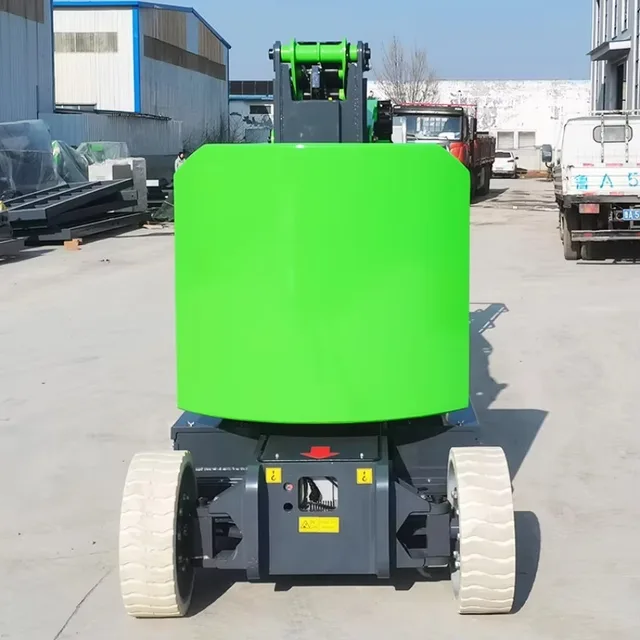

Image 6

YG Mobile Spider Boom Lift – Telescopic Boom for High Reach

From R37909.83

  • Color:

  • Plug Type:

101 in stock

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description

    Introducing the YG Mobile Spider Boom Lift, a versatile and efficient solution for reaching great heights effortlessly. With customizable pricing, lithium batteries, and lead-acid battery options, this boom lift offers up to 22.5 meters of working height and a maximum load capacity of 350kg.

    PLEASE NOTE:


    1.Since it is a customized product, the price needs to be calculated according to specific needs, so the link price is not the final price. Since tariffs and other fees are different in each country, it is impossible to calculate all costs in advance, so door-to-door delivery requires communication and calculation of costs later.

    2. The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations

    My Whatsapp:+86 183 3717 5537

    MY Email:[email protected]

    One man boom lift cherry picker outdoor articulated lifting platform

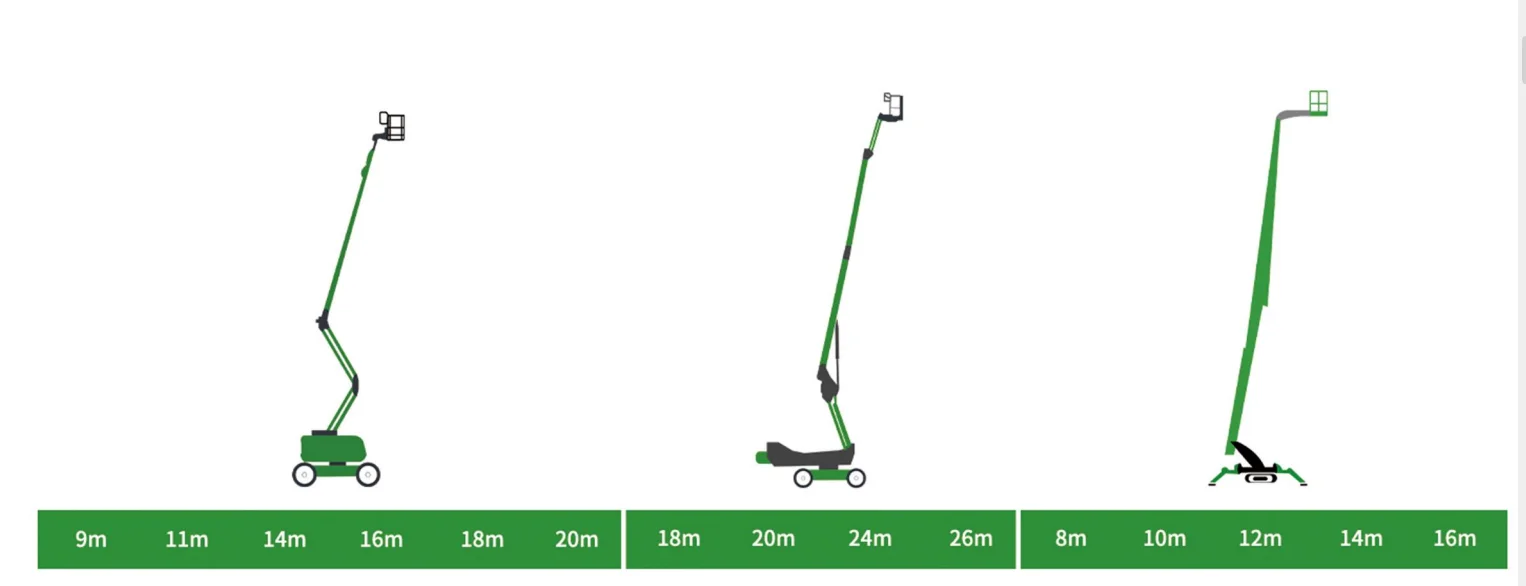

    The maximum working height of the electric articulating boom aerial work platform is 11.5 meters to 22.5 meters. Maximum load is 350kg. Depending on your work needs, lithium batteries and lead-acid batteries are optional.
    model
    Y09M
    Y12M
    Y14M
    Y16M
    Y18M
    Y20M
    maximum working height
    11.5m
    12.52m
    16m
    18m
    20.2m
    22.5m
    Maximum platform height
    9.5m
    10.52m
    14m
    16m
    18.2m
    20.5m
    Maximum span height
    4.2m
    4.65m
    7.0m
    7.3m
    8.0m
    9.4m

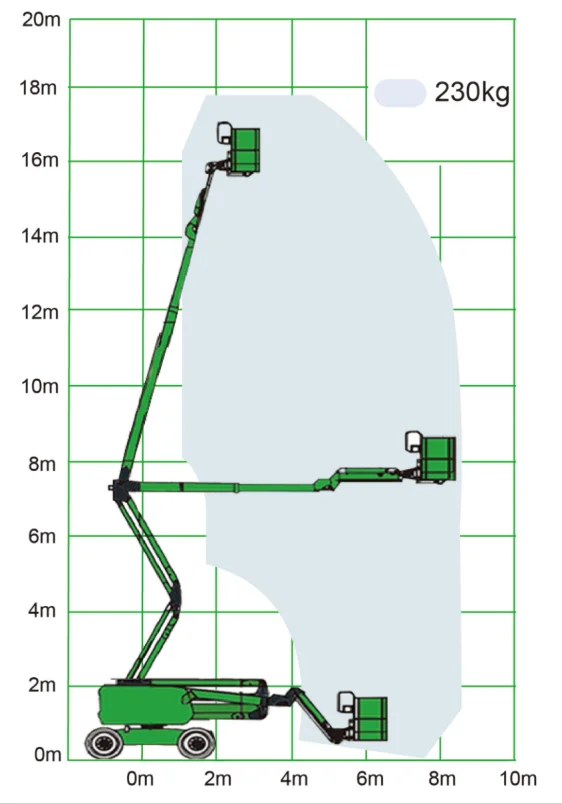

    Maximum working radius
    6.5m
    6.78m
    8.05m
    8.6m
    11.1m
    11.8m
    Platform size
    1.4*0.7m
    1.4*0.7m
    1.4*0.76m
    1.4*0.76m
    1.8*0.76m
    1.8*0.76m

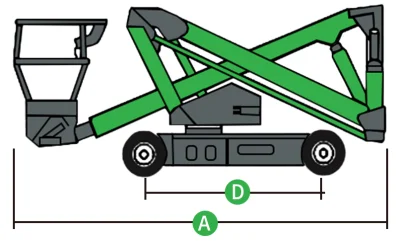

    Vehicle length-Collection
    5.2m
    5.6m
    6.5m
    7.2m
    8.49m
    8.99m
    Vehicle width
    1.27m
    1.50m
    1.76m
    1.90m
    2.49m
    2.49m
    Vehicle Height-Collection
    2.0m
    2.0m
    2.0m
    2.0m
    2.38m
    2.38m
    Wheelbase
    1.65m
    1.95m
    2.0m
    2.01m
    2.5m
    2.5m
    Ground clearance (center)
    0.14m
    0.14m
    0.25m
    0.25m
    0.3m
    0.3m
    Rated load carrying capacity
    200kg
    200kg
    230kg
    230kg
    256kg/350kg
    256kg/350kg
    Platform rotation range
    ±80°
    ±80°
    ±80°
    ±80°
    ±80°
    ±80°
    Flying arm luffing range
    ±70°
    ±70°
    ±70°
    ±70°
    ±70°
    ±70°
    Driving speed (car closing state)
    4.8km/h
    4.8km/h
    5.1km/h
    5.0km/h
    4.8km/h
    4.5km/h
    Driving grade
    35%
    35%
    30%
    30%
    45%
    40%
    Maximum working slope
    3°
    3°
    3°
    3°
    3°
    3°
    outer turning radius
    3.3m
    4.08m
    3.2m
    3.45m
    5.0m
    5.0m
    Drive steering form
    2×2
    2×2
    2×2
    2×2
    4×2
    4×2
    Total Weight
    5410kg
    4800kg
    5960kg
    6630kg
    9100kg
    10000kg
    Battery
    48V/320Ah
    48V/320Ah
    48V/320Ah
    48V/320Ah
    48V/420Ah
    48V/420Ah
    Pump motor power
    4kw
    4kw
    4kw
    4kw
    12kw
    12kw
    Traveling motor power
    3.3kw
    3.3kw
    3.3kw
    3.3kw
    3.3kw
    3.3kw
    lithium battery
    optional





    range extender
    optional





    Insulated work bucket
    optional





    Related product

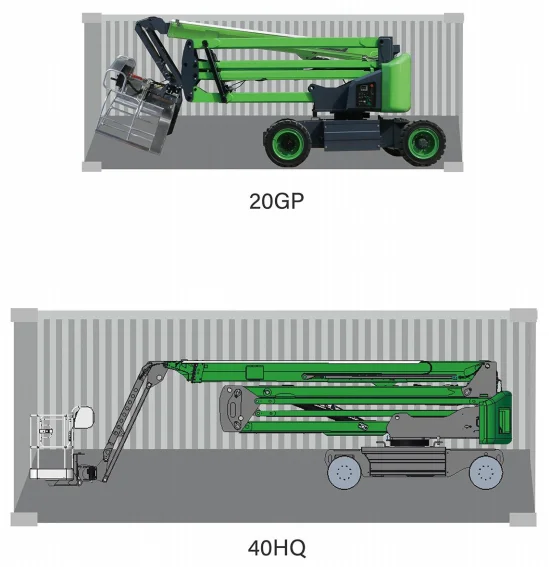

    Packaging & Shipping
    Warning
    Do Not Exceed Weight Capacity
    Overloading the platform can result in structural damage or tip-over. Always check and adhere to the specified weight limit.

    Use on Level Surfaces Only
    Ensure the platform is placed on a firm and level surface. Operating on uneven or sloped ground increases the risk of tipping.

    Avoid Electrical Hazards
    Maintain a safe distance from overhead power lines and electrical equipment. Contact with live wires can cause serious injury or death.

    Do Not Use in High Winds
    Operating the scissor lift in windy conditions can be hazardous. Follow the manufacturer’s guidelines for wind speed limits.

    Always Use Guardrails
    Ensure that all guardrails are in place and securely locked before use. Do not lean or climb on the guardrails.

    Wear Fall Protection
    Depending on local regulations, use fall protection equipment such as harnesses and lanyards to prevent falls from the platform.

    Do Not Stand on the Platform Edge
    Keep feet securely positioned on the platform floor. Standing or sitting on the platform’s edge is dangerous and may cause falls.

    No Climbing on the Lift
    Never climb on the scissor arms or extend your body outside the platform. This can result in loss of balance or tip-over.

    Check for Obstacles
    Before moving the lift, inspect the area for potential obstacles such as holes, debris, or other equipment that could obstruct safe operation.

    Do Not Use the Lift as a Crane
    The scissor lift is not designed to hoist or tow materials. Only use it to lift personnel and their necessary tools.

    Ensure Proper Training
    Only trained and authorized personnel should operate the scissor lift. Familiarize yourself with the operation.

    .
